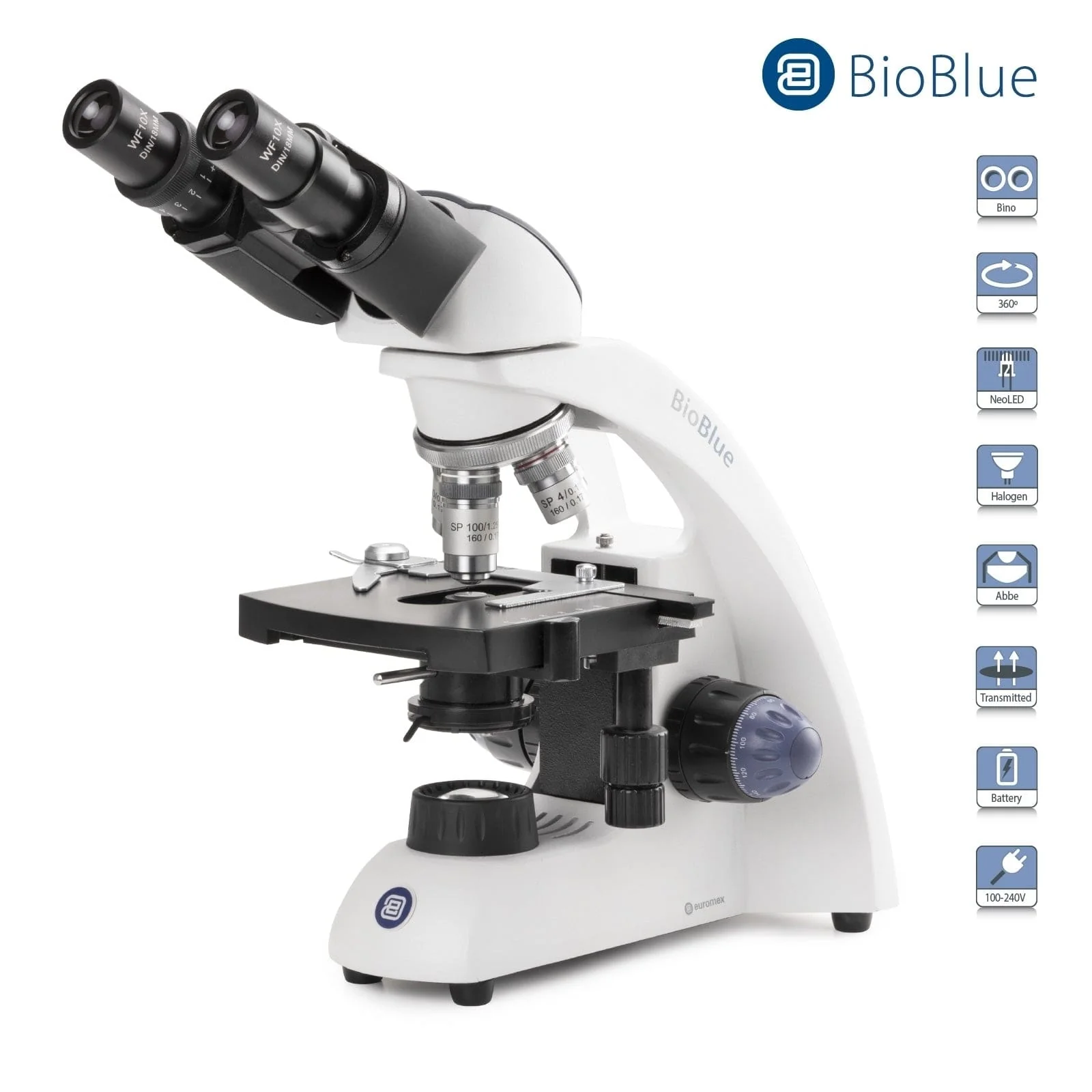

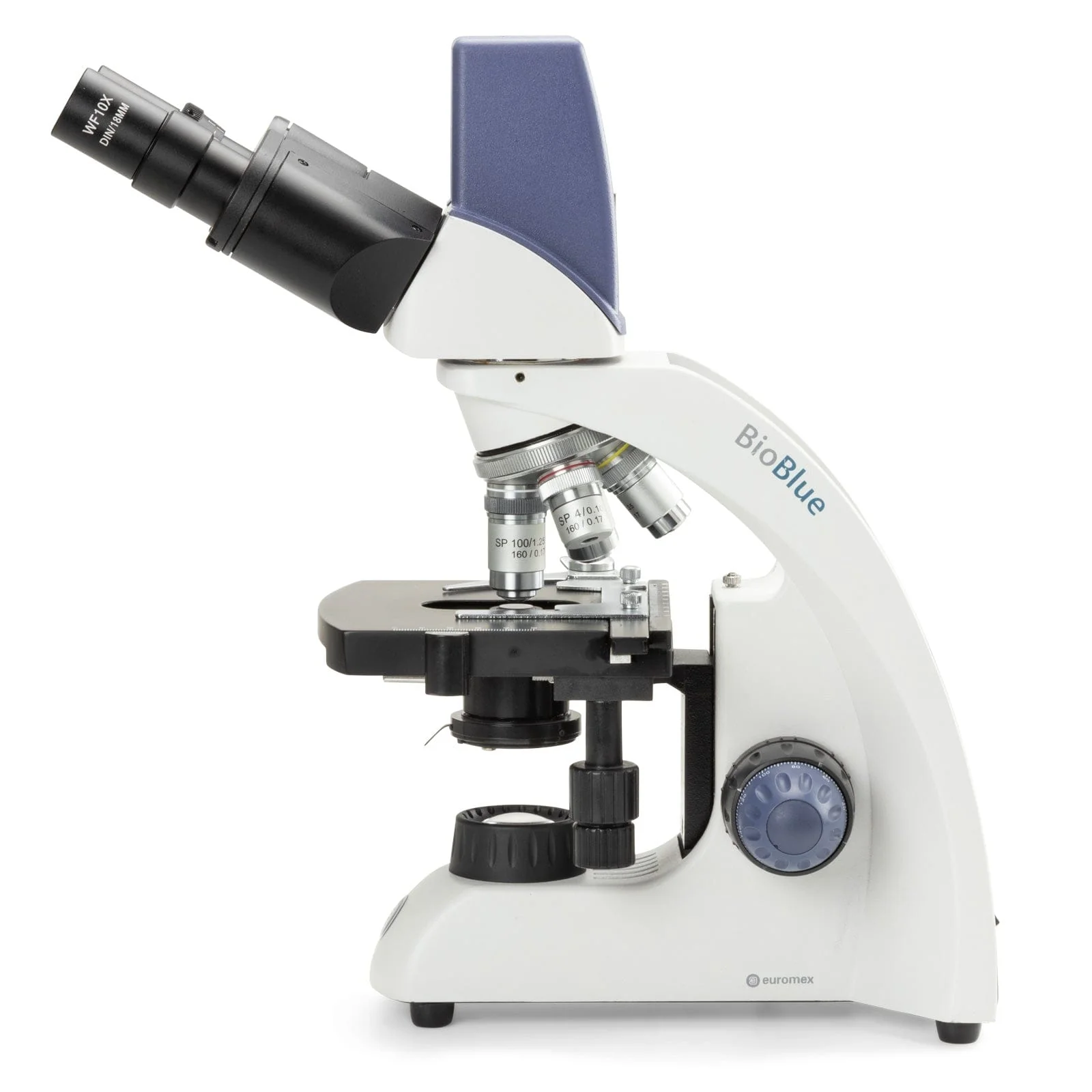

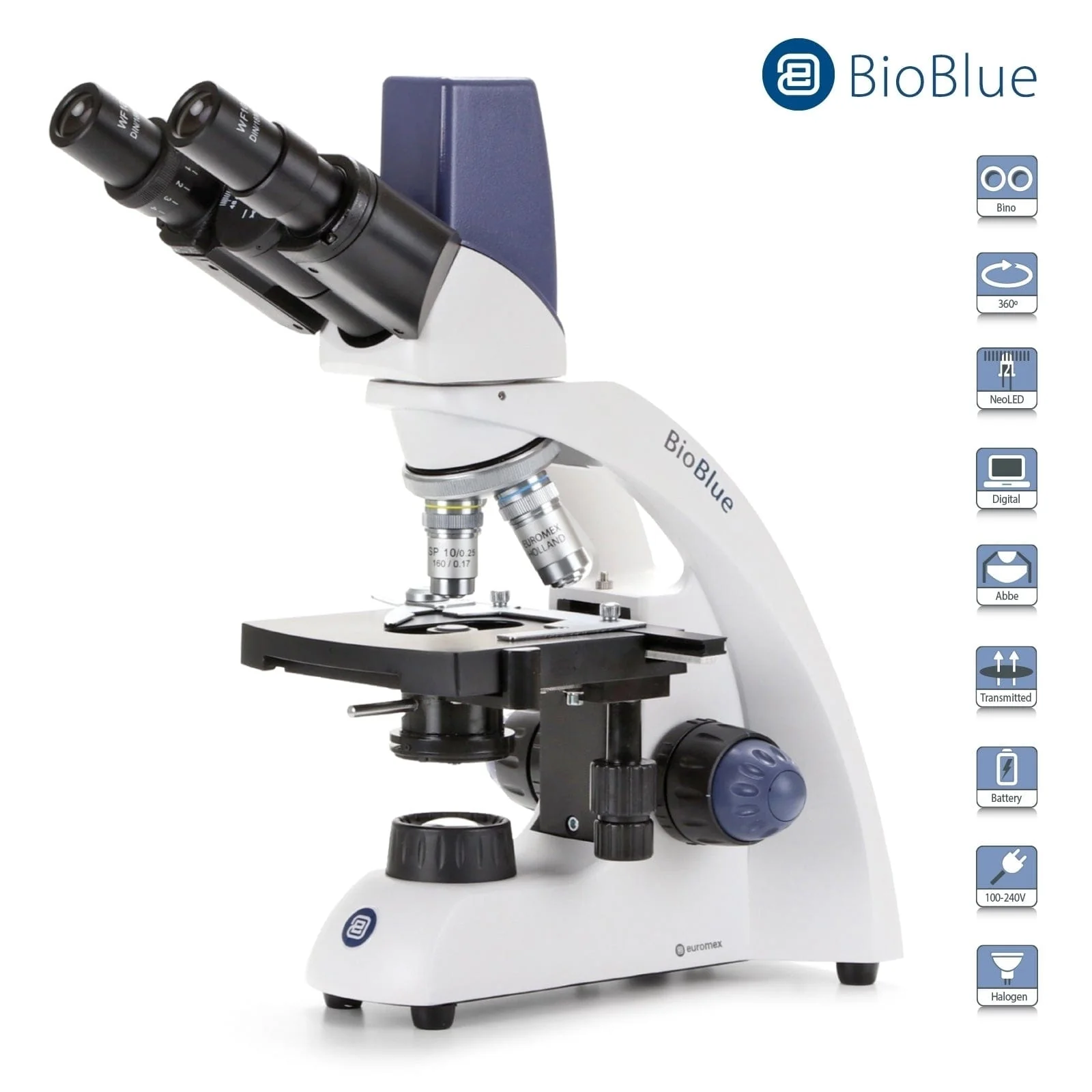

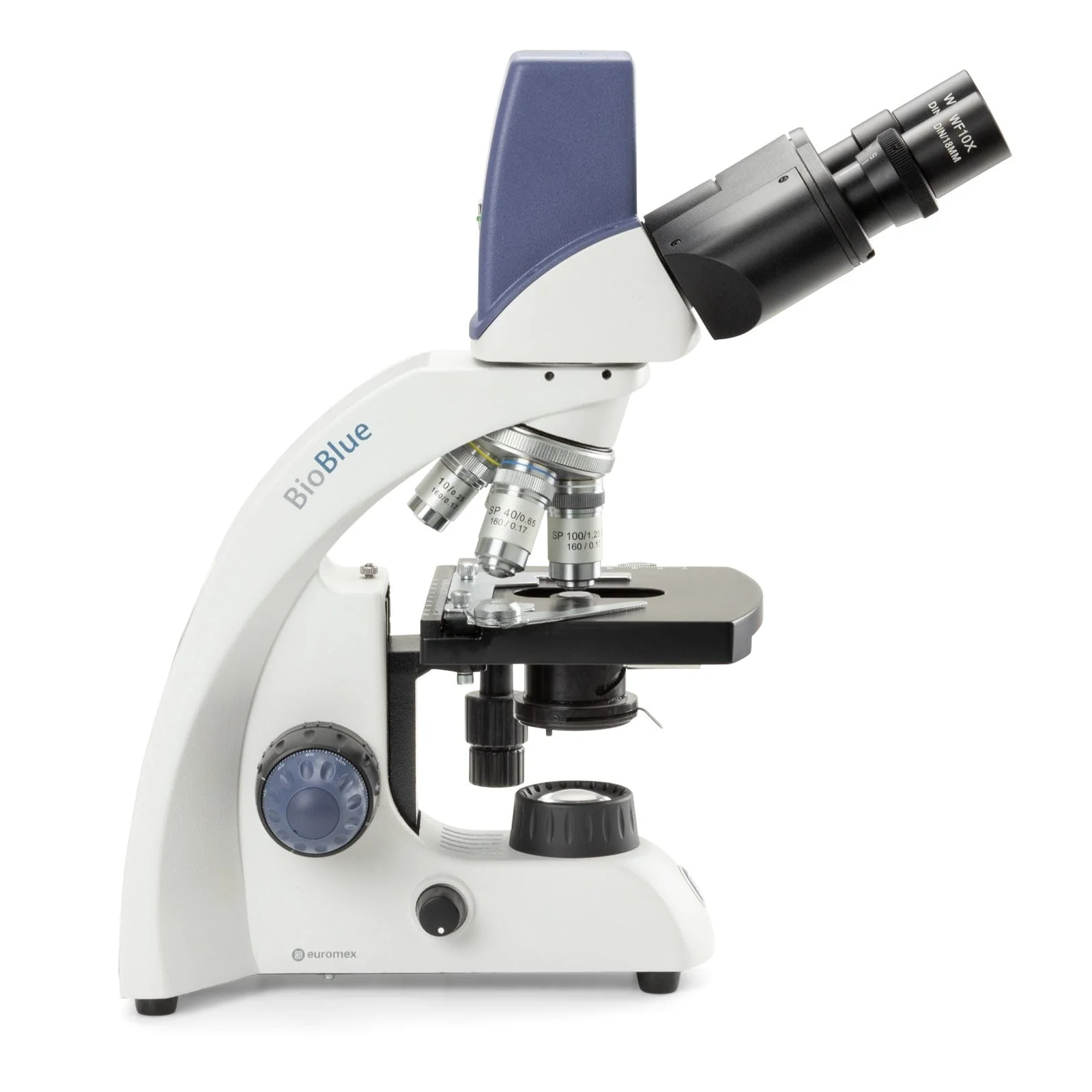

Euromex BioBlue Series Portable Binocular Compound Digital Microscope w/ 5.0MP Integrated Digital Camera

Extensive experience of Euromex optical engineers has contributed to the development and implementation of the BioBlue series with the finest optical components and guaranteed performance, which means clear bright images at every magnification. The modern microscopes of the BioBlue series are especially developed for educational purposes with primary focus on ergonomic and today’s quality standards.

These microscopes are supplied with secured eyepieces and adjustable rack stop to prevent damage to sample and objectives. The DIN WF 10x/18 eyepieces and the semi plan achromatic corrected 45 mm DIN objectives of the BioBlue BB4267 generate a crisp high-resolution image. When changing magnification the image remains perfectly in focus and centered. The 130 x 130 mm stage with double layered 70 x 28 mm X-Y mechanical stage enable precision positioning of the specimen.

Features:

WF10x/18mm eyepiece(s)

Reversed nosepiece for four semi plan objectives

Integrated X-Y mechanical stage

Coaxial coarse and fine adjustments with rack stop

Height adjustable abbe condenser with iris diaphragm and filter holder

Binocular model supplied with 1 W NeoLED illumination for increased light output

Rechargeable batteries and integrated power supply

Ergonomic stand

Specifications:

EYEPIECE(S)

WF10x/18 mm Wide field

HEAD

All heads are 360 degree rotatable and secured

Binocular model has 30 degree inclined tubes, interpupillary distance is adjustable between 48 and 75 mm and equipped with a ± 5 diopter adjustment on the left tube

Model with digital head supplied with a integrated 5.0 MP 1/2” CMOS sensor with 2560 x 1920 pixel resolution USB 2.0 camera

NOSEPIECE

Reversed quadruple nosepiece on ball bearings.

OBJECTIVES

Supplied with semi plan 4x/0.10, 10x/0.25, 40x/0.65 and S100x/1.25 oil immersion objectives

The S100x oil immersion objectives are spring loaded (to prevent damage to sample and objectives)

All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

FOCUSING

Coaxial coarse and fine adjustments with 200 graduations. Precision 2 μm per graduation, 0.4 mm per rotation

Total travel approximately 23 mm

Supplied with an adjustable rack stop to prevent damage to sample and objectives

The coarse adjustment is equipped with friction control

STAGE

130 x 130 mm with mechanical 70 x 28 mm X-Y translation

CONDENSER

Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder

ILLUMINATION

Supplied with an intensity adjustable 1 W NeoLED illumination system for increased light output

Rechargeable batteries and integrated power supply for cordless operation

CAMERA AND SOFTWARE

Models with integrated 5.0 MP CMOS USB-2 camera are supplied with the ImageFocus 4 software. Besides capturing of images and videos, this software allows measurements on still and live images and performing annotations on captured images. Compatible with Windows 7, 8 and 10, both 32 and 64 bits configurations

PACKAGE CONTENT

Supplied with power cord, dust cover, a spare fuse, user manual and 5 ml immersion oil for models with S100x objective

LED illumination is supplied with a white filter

All packed in a polystyrene box
