AmScope SM-6 Series Zoom Trinocular Stereo Microscope 7X-45X Magnification on Articulating Arm with Fluorescent Light and 1.3MP Digital Camera
AmScope SM-6 Series Zoom Trinocular Stereo Microscope 7X-45X Magnification on Articulating Arm with Fluorescent Light and 1.3MP Digital Camera

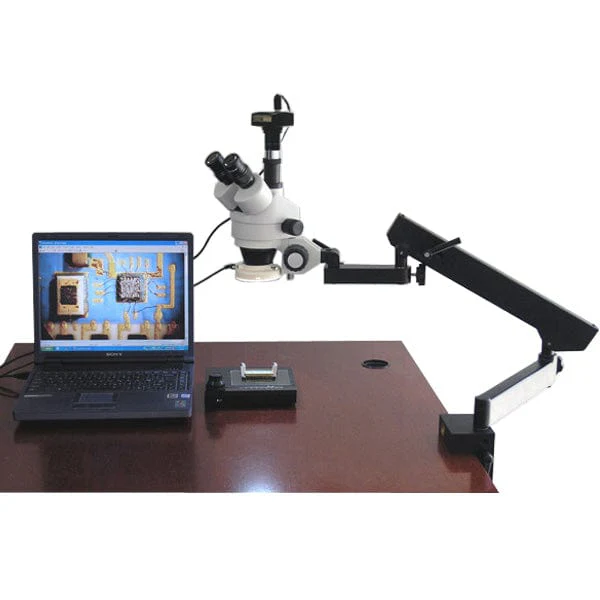

This is a trinocular stereo zoom microscope with an articulating support system. The 3-section articulating arm uses spring tension with multiple locks to pivot and swing the microscope over a large area. Designed to meet the demands of modern microscopy applications, this microscope exceeds all expectations. It comes with SUPER widefield optics and super large stand. This microscope offers high resolution and good depth within a broad field of view. It provides crystal clear sharp stereo images with a 4" (100mm) native working distance. Its 45 degree inclined trinocular head ensures an easy observation and rubber eyeguards provide further comfort.
The stereo optics provide clear, sharp images with excellent focus-depth and a large working-distance. With 0.7X-4.5X zoom objectives, moving through the magnification range is as easy as turning a knob. 10X wide-field eyepieces provide an ample magnification range from 7X to 45X, with high-eyepoint optics to accommodate glasses or goggles.
The microscope also features a switched trinocular photo port for attaching an imaging device without the need to replace one of the eyepieces. The photo port is especially useful for attaching a video-capable camera for a live video stream that can be projected on a television or monitor. Our unmatched lineup of cameras offers endless possibilities, including computer-based imaging and measurements, time-lapse capture, and wi-fi or LAN networking.
The articulating support system can be used to position the microscope over a large area, and over a large range of heights. The support system uses a heavy-duty clamp which should be mounted to a sturdy work surface up to 2" thick. The spring-tensioned arm sections can be individually locked to set a working height, while pivoting joints move freely to allow the microscope to be swung into place when needed.
Features :

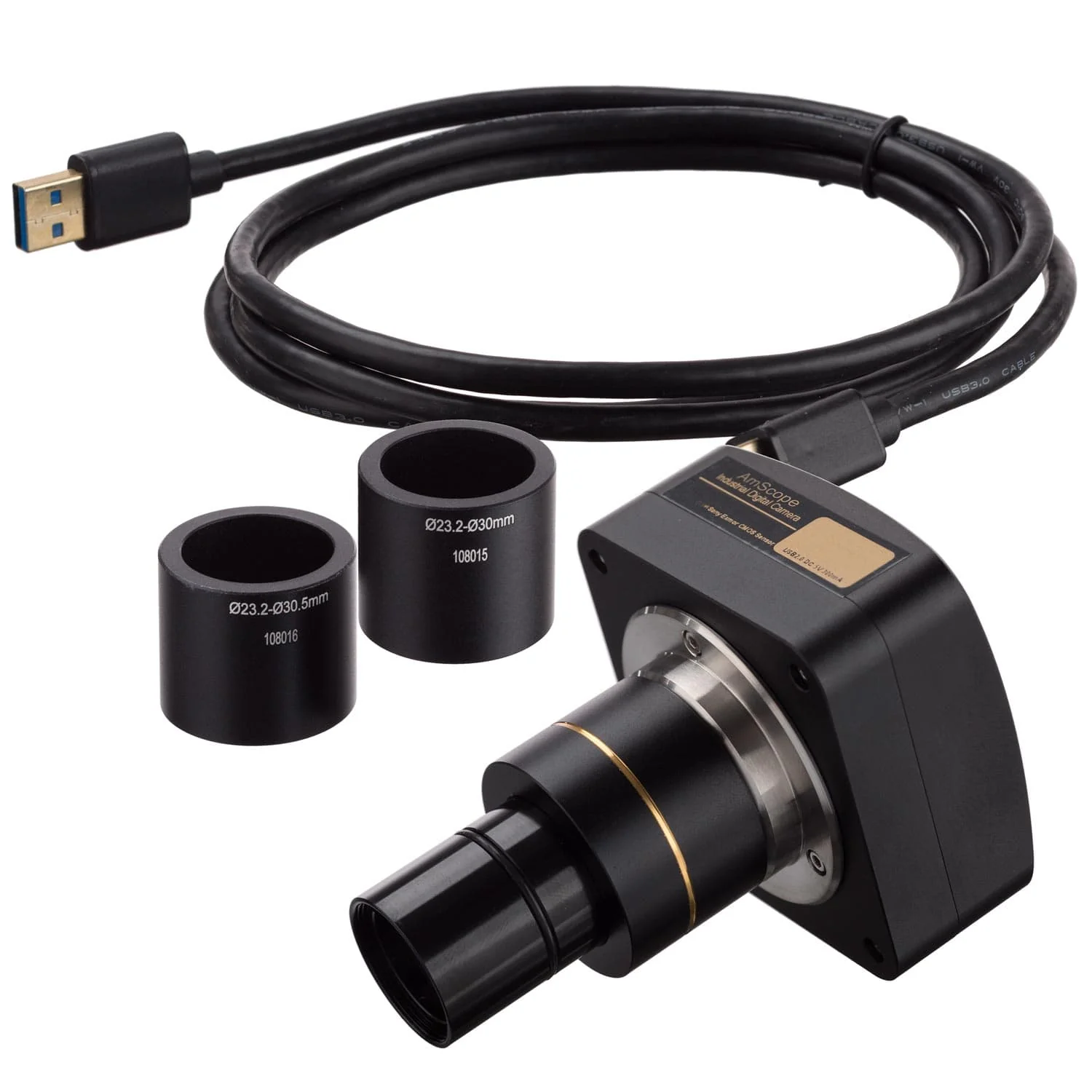

Monitor and capture photos and videos with the included 1.3MP USB2.0 camera. The C-mount camera is specially designed for use with microscopes, allowing you to watch live images, and to record photos or videos on your computer. This ability to view microscopic images on your computer reduces eye-strain, and allows groups of people to view images at the same time. A 0.37X reduction lens is included to capture more of the microscope's field-of-view. Our professional software for Windows provides a wide assortment of capture and photo-editing functions including color correction, time-lapse capture, image stitching, and a full complement of measuring tools. A lite version of our software is available for Mac and Linux with essential functionality for capturing photos and videos.
This package includes an 8W fluorescent ring-light for seamless lighting. This lightweight illuminator mounts to the microscope’s objective housing, and projects a smooth, encompassing field of light over objects, eliminating most shadows. Whether used as the sole light-source or in combination with additional illuminators, the ring-light produces a crucial light pattern for virtually any application.
Specifications
| Microscope Head | |
| Head Type | Trinocular, 45° incline, 360° rotatable |
| Optical System | Greenough stereoscopic |
| Interpupillary Adjustment | Compensation-free gemel, 54-76mm |
| Ocular-port Diameter | 30mm |
| Dioptric Adjustment | Both oculars, ±5dp |
| Eyepieces | 10X |
| Photo Port | height-adjustable 23mm tube, CX series |
| Objective Lenses | 0.7X-4.5X zoom |
| Objective Numerical Aperture | 0.065 @ 4.5X 0.02 @ 0.7X |
| Objective Resolution | 195 lp/mm @ 4.5X 60 lp/mm @ 0.7X |
| Native Field-of-View (10X Eyepieces) | 4.4mm-28.6mm |
| Native Working Distance | 100mm |
| Auxiliary (Barlow) Lens | 48mm thread: none included |
| Stand | |
| Stand Type | ASC 40" articulating arm with table clamp |
| Focusing-block Focus Range | 50mm |
| Stage Plate Diameter | 95mm |
| Camera Specifications | |
| Sensor Type | CMOS |
| Sensor Optical Format | 1/3" |
| Active Pixels | 1.3M (1280 x 1024) |
| Pixel Size | 3.6µm x 3.6µm |
| Active Sensor Area | 4.60mm x 3.70mm |
| Shutter | electronic rolling shutter |
| Sensitivity | 1.0V/Lux-sec |
| Spectral Response | 380-650nm with IR-cut filter |
| Capture Resolution and Maximum Framerate | 15fps @ 1280x1024 26fps @ 640x512 50fps @ 320x256 |
| Connectivity | USB 2.0 |
| Lens-mount | C-mount |
| Compensating Lens | 0.37X |
| Power | 5VDC over USB |
Software
| OS Requirements | Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+ | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Hardware Requirements | Intel Core2 2.8GHz or comparable processor, 4GB RAM | ||||||||||||||||||
| Features |
|
