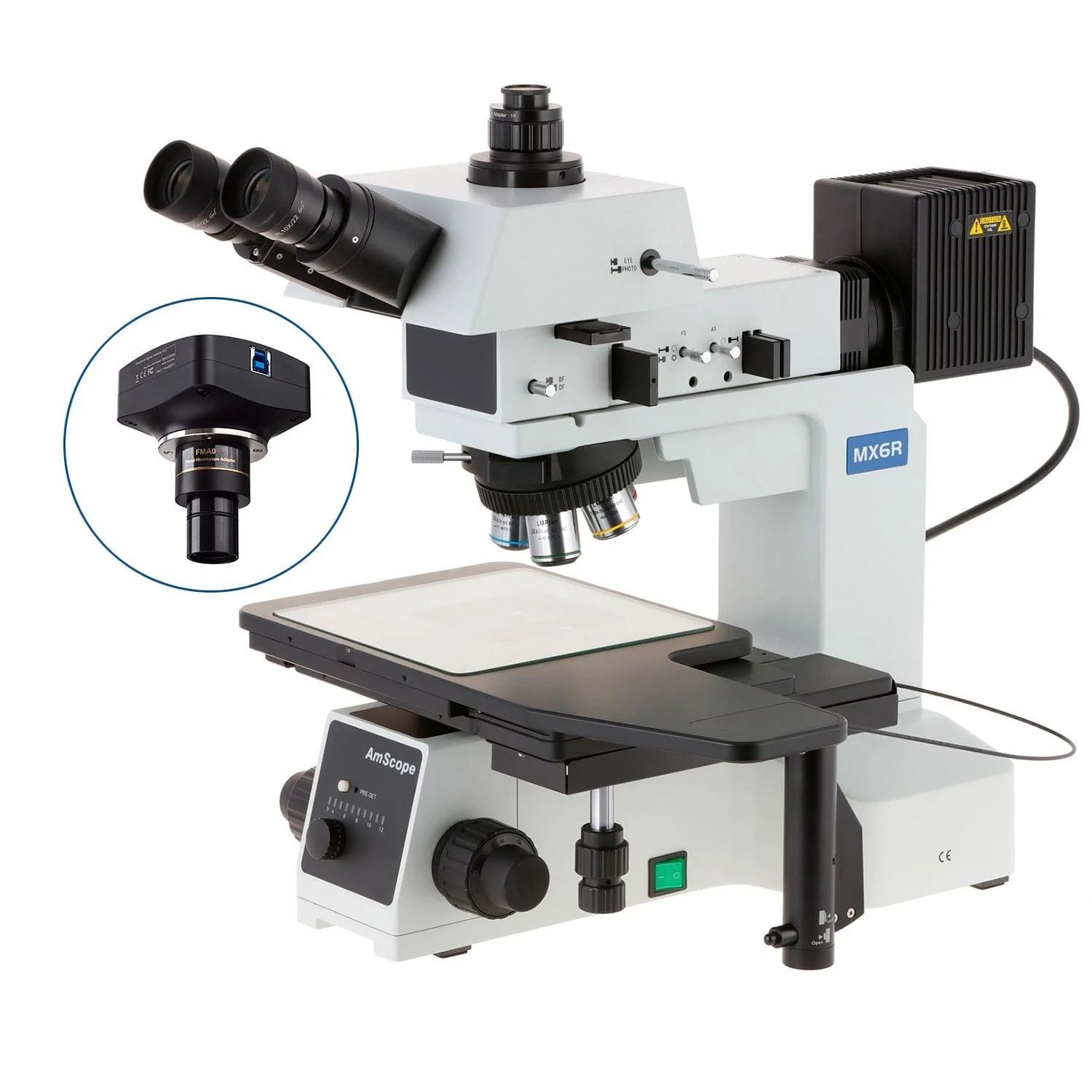

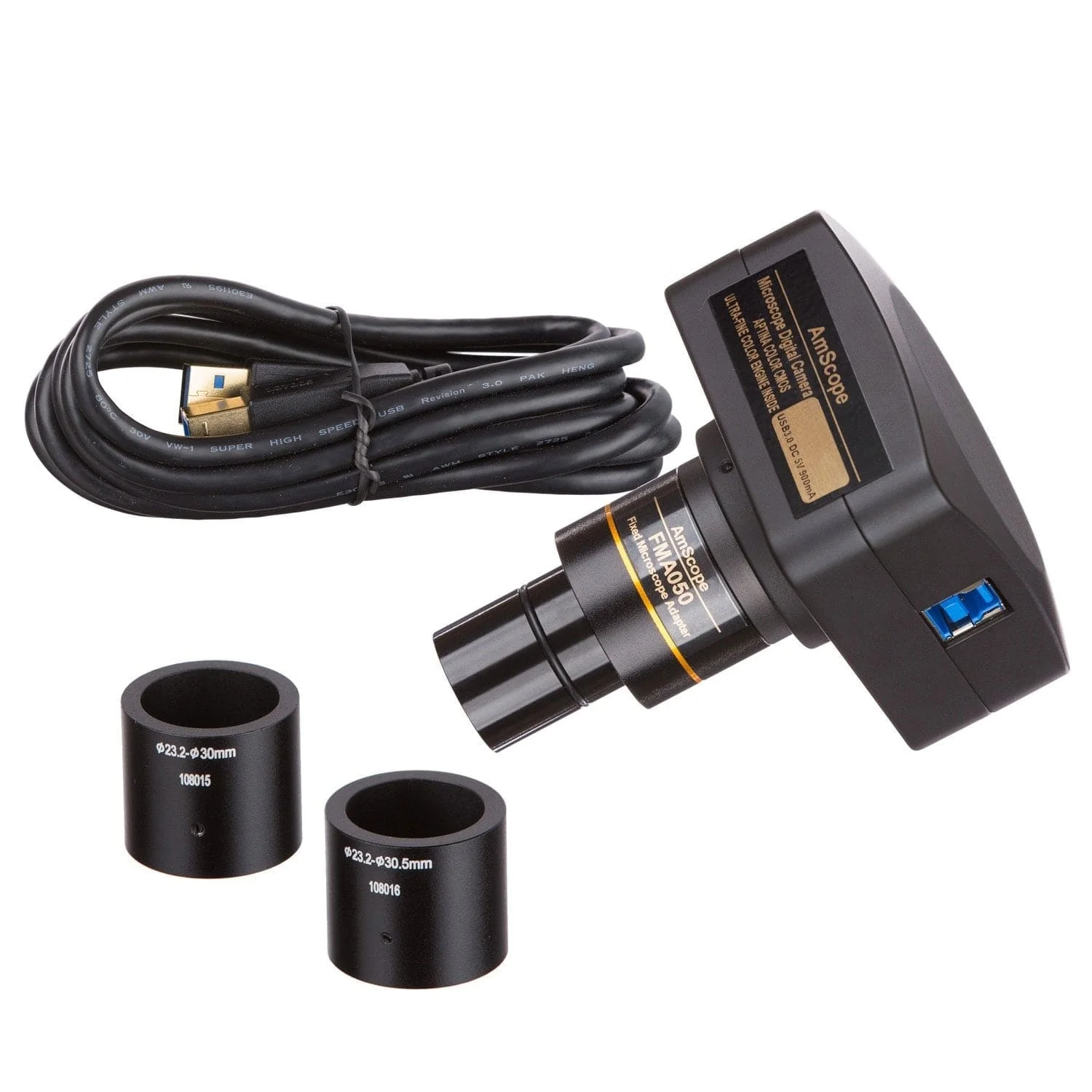

AmScope ME600 Series Large-Format Stage Brightfield and Polarizing Metallurgical Upright Trinocular Compound Microscope with Additional 100X Objective Lens and Optional Digital Camera

AmScope ME600 Series Large-Format Stage Brightfield and Polarizing Metallurgical Upright Trinocular Compound Microscope with Additional 100X Objective Lens and Optional Digital Camera

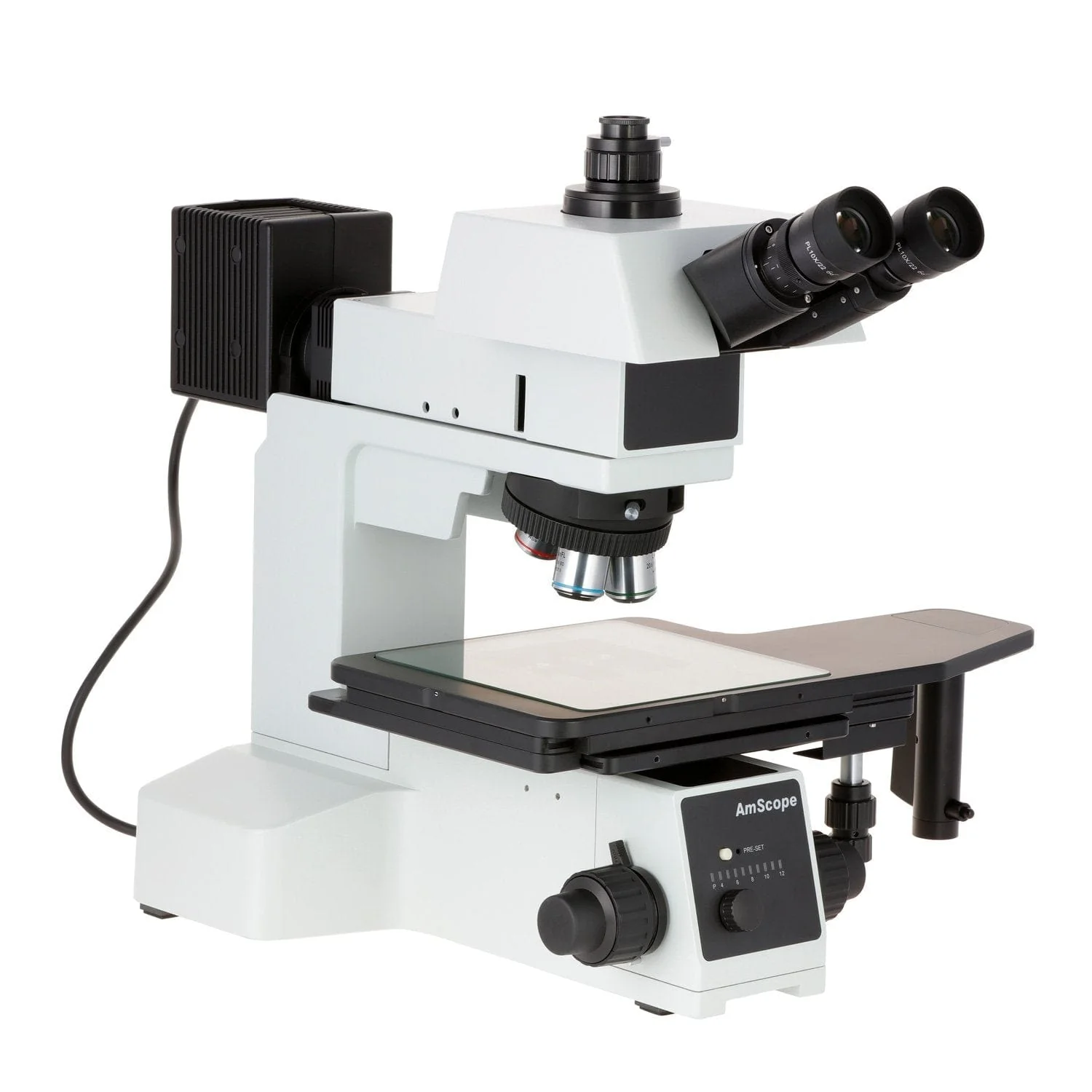

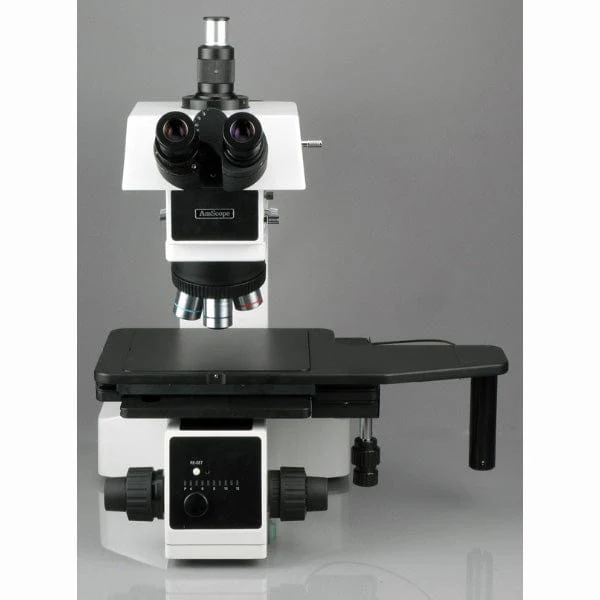

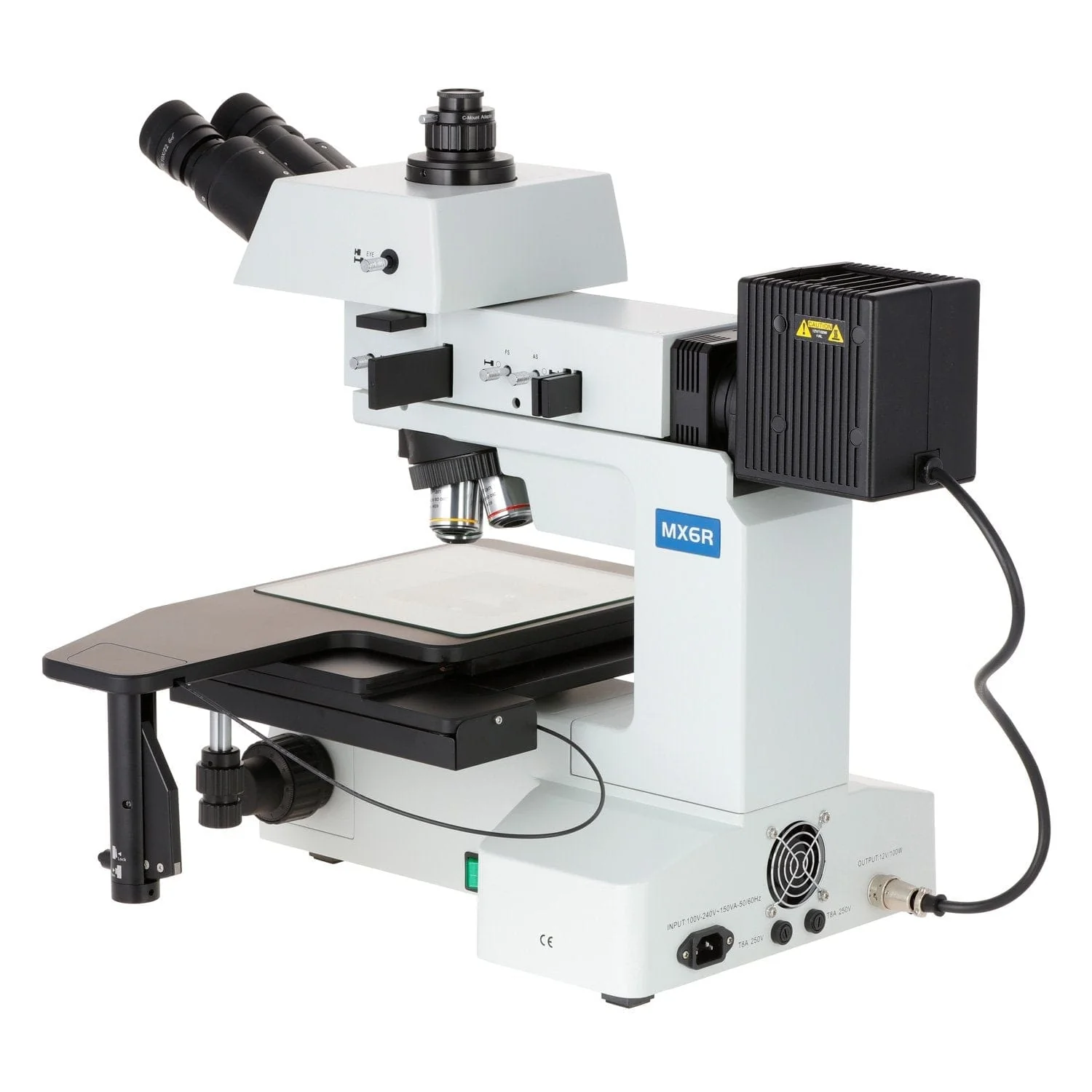

This is an advanced reflected-brightfield, darkfield and polarizing metallurgical microscopy system. The microscope comes with a quintuple nosepiece, four infinity Plan objectives and a powerful 100W reflected Koehler illumination system, providing brightfield, darkfield and polarizing features. This microscopy system is perfect for metallurgical labs and foundries for silicon wafer inspection, integrated circuit examination, quality control and R&D applications. It is an ideal instrument for metallurgical, mineral and crystal identification.

Optics

The ME600T uses M25 BD objective lenses which provide a larger field-of-view, and can be used with reflected-light darkfield illumination. The quintuple turret allows you to quickly switch between the five lenses. With the included 10X eyepieces, the overall magnification range spans 50X to 1000X.

Features :

  • A brightfield, darkfield and polarizing metallurgical microscopy system with 100W Kohler illumination
  • Color corrected infinity optical system (CCIS)
  • 25 degree inclined 360 degree rotatable gemel trinocular head with vertical image
  • 100% prismatic rate

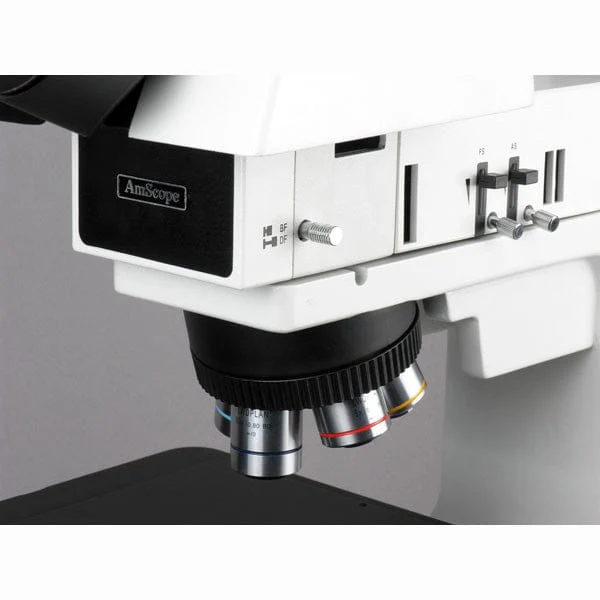

  • Quintuple nosepiece with brightfield (BF) and darkfield (DF)
  • Five infinity PLAN Achromatic objectives included
  • Eyepiece with 0.1mm micrometer and cross hair included
  • 100 Watt halogen reflected EPI-illumination system

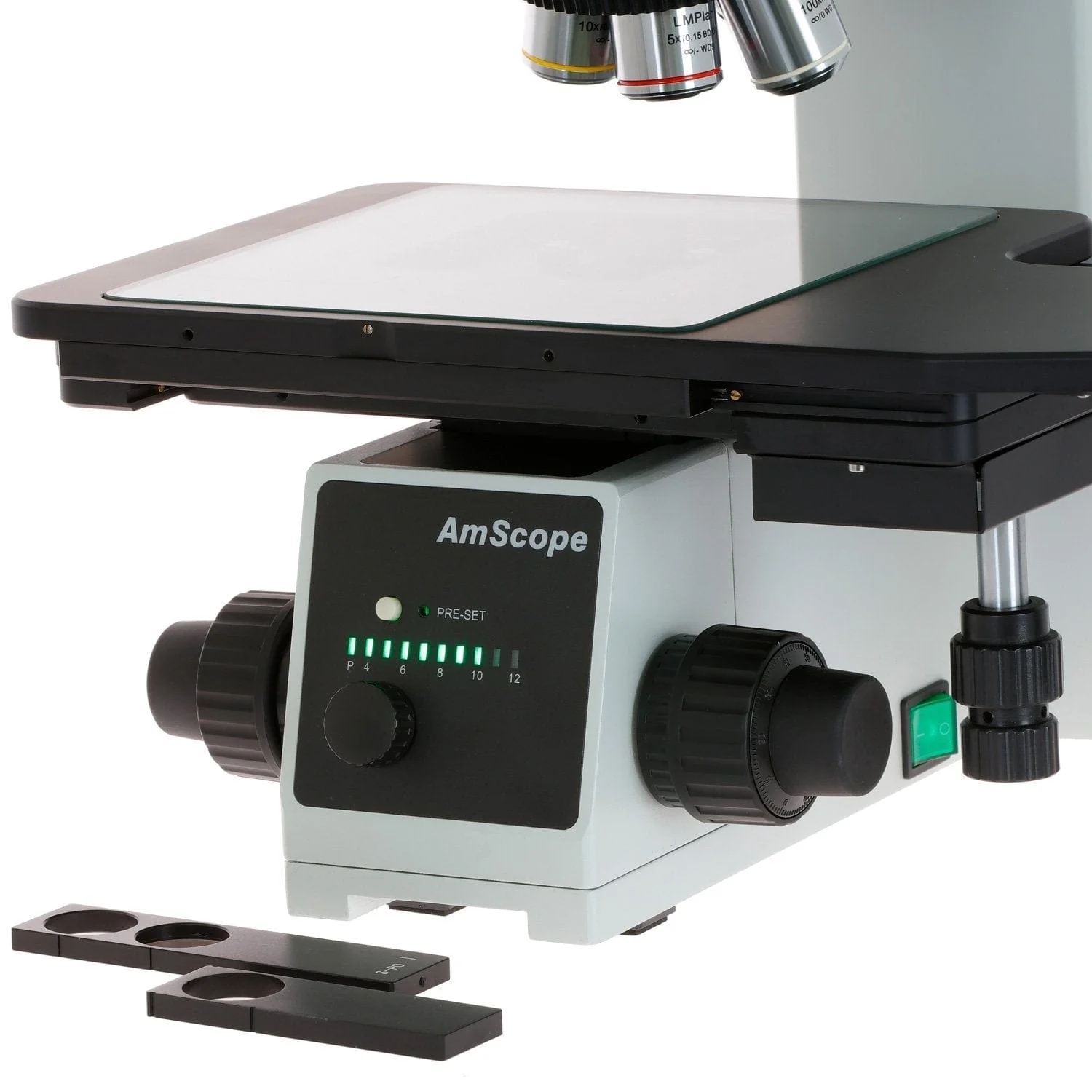

  • Digital controlled intensity adjustment and light reset

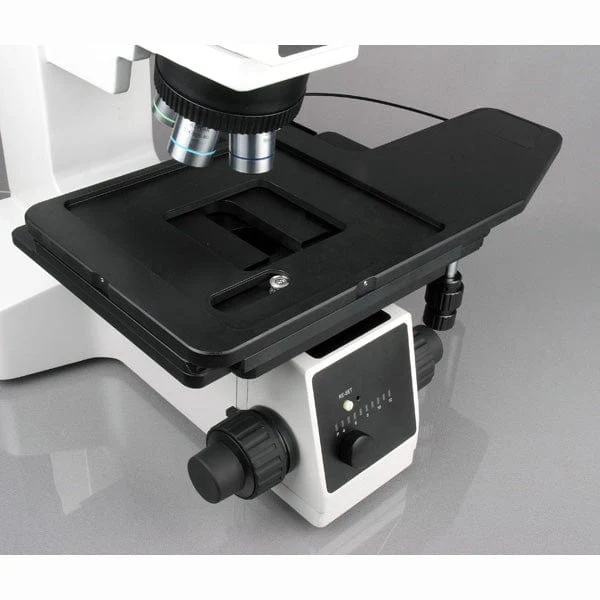

  • 6" extremely large mechanical stage with clutch for swift moving control
  • Low position stage traveling controls
  • Full optical glass elements
  • Precise ground glass lenses
  • All metal mechanical parts
  • Coaxial coarse and fine focusing system
  • Dual focusing control knobs
  • Focusing tension control mechanism
  • Adjustable interpupillary distance
  • Adjustable diopters on both eye tubes

    • Technical drawings with measurements (in mm)


    Specifications :

  • Optical system: color corrected infinity optical system (CCIS)
  • Eyepieces: 10X
  • Nosepiece: quintuple nosepiece with 5 M25 BD brightfield/darkfield ports
  • Objective: infinity-corrected plan-achromatic metallurgical 5X, 10X, 20X, and 50X for both brightfield and darkfield
  • Focusing System: coaxial coarse and fine; moving range: 33mm, fine precision: 0.001mm
  • Stage: 6" rectangle mechanical stage; moving range: 158mm x 158mm; low hand adjustment and clutch for swift moving control
  • Illuminator: reflected Kohler illuminator with BF and DF; 12V/100W halogen; digital adjustment of brightness and light renew function
  • Power Supply: 110-240VAC 50Hz/60Hz wide band

    • Objective Lenses

    Magnification Corrections NA Working Distance Cover-glass Thickness
    5X Plan-achromatic 0.14 11mm 0
    10X Plan-achromatic 0.25 9.5mm 0
    20X Plan-achromatic 0.40 3.4mm 0
    50X Plan-achromatic 0.55 7.5mm 0
    100X Plan-achromatic 0.8 2mm 0


    Packing List:

  • One microscope body
  • One trinocular head
  • One photo-port
  • One episcopic illumination assembly
  • One pair 10X eyepieces
  • Five BD objective lenses: 5X, 10X, 20X, 50X, 100X
  • Assorted filters
  • One AC power cable
    • Select Magnification

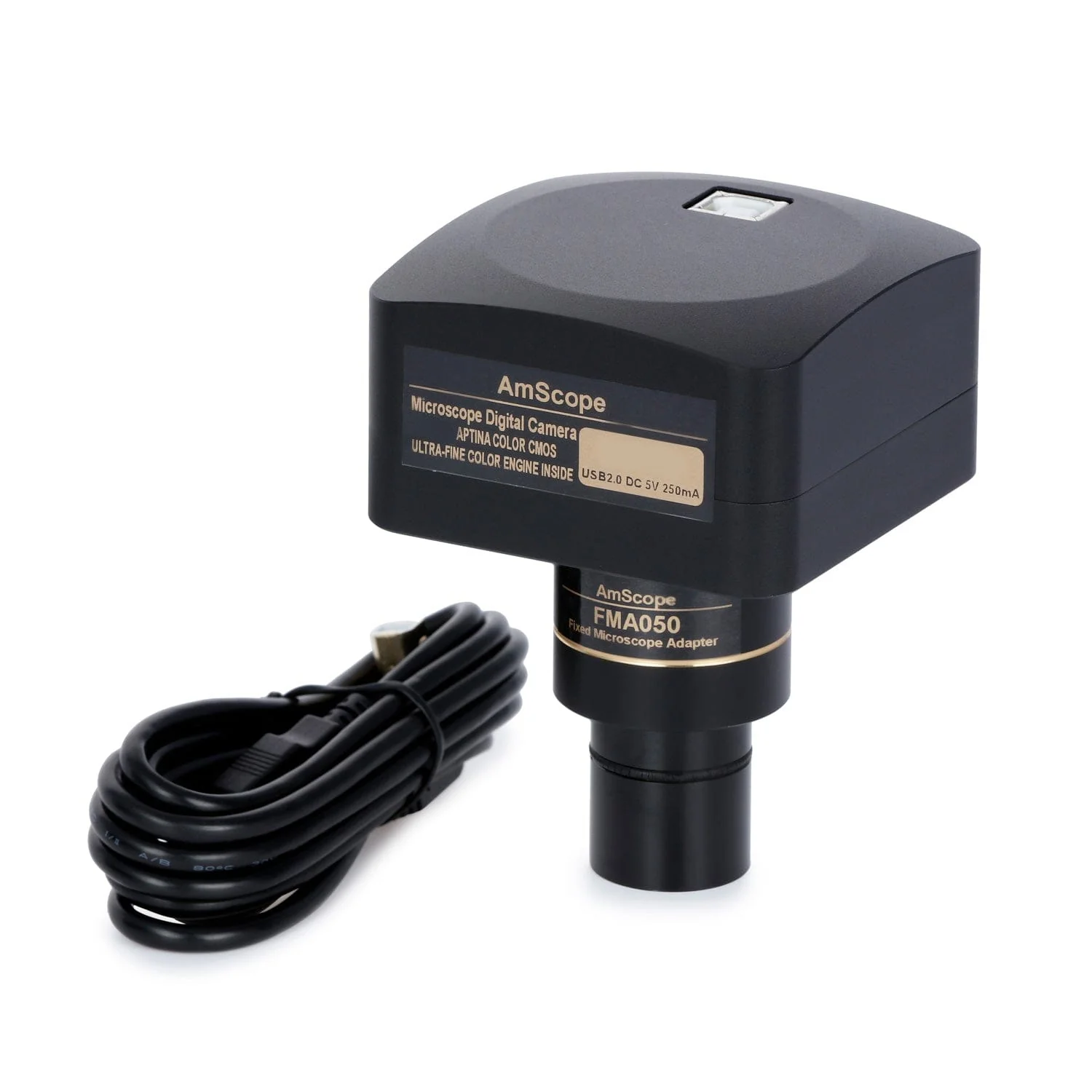

    Select Camera Type
    Select Camera Pixels
    From $4,244.80

    Original: $12,127.99

    -65%
    AmScope ME600 Series Large-Format Stage Brightfield and Polarizing Metallurgical Upright Trinocular Compound Microscope with Additional 100X Objective Lens and Optional Digital Camera—

    $12,127.99

    $4,244.80
    Product image 1
    Product image 2
    Product image 3
    Product image 4
    Product image 5
    Product image 6
    Product image 7
    Product image 8
    Product image 9
    Product image 10
    Product image 11
    Product image 12
    Product image 13

    Description

    This is an advanced reflected-brightfield, darkfield and polarizing metallurgical microscopy system. The microscope comes with a quintuple nosepiece, four infinity Plan objectives and a powerful 100W reflected Koehler illumination system, providing brightfield, darkfield and polarizing features. This microscopy system is perfect for metallurgical labs and foundries for silicon wafer inspection, integrated circuit examination, quality control and R&D applications. It is an ideal instrument for metallurgical, mineral and crystal identification.

    Optics

    The ME600T uses M25 BD objective lenses which provide a larger field-of-view, and can be used with reflected-light darkfield illumination. The quintuple turret allows you to quickly switch between the five lenses. With the included 10X eyepieces, the overall magnification range spans 50X to 1000X.

    Features :

  • A brightfield, darkfield and polarizing metallurgical microscopy system with 100W Kohler illumination
  • Color corrected infinity optical system (CCIS)

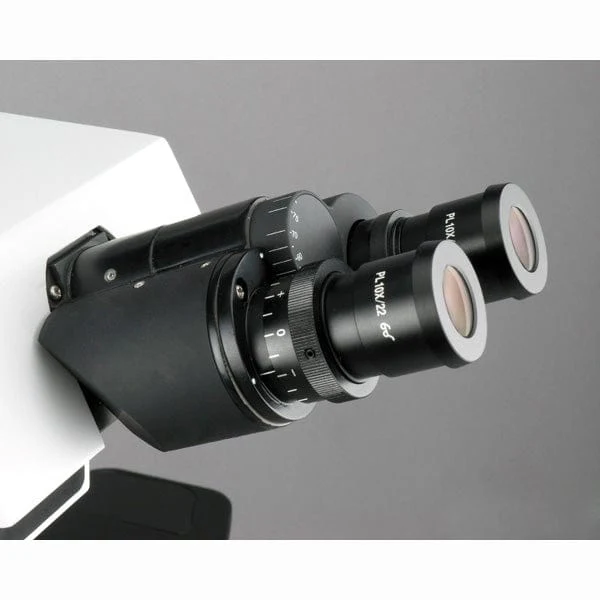

  • 25 degree inclined 360 degree rotatable gemel trinocular head with vertical image
  • 100% prismatic rate
  • Quintuple nosepiece with brightfield (BF) and darkfield (DF)
  • Five infinity PLAN Achromatic objectives included
  • Eyepiece with 0.1mm micrometer and cross hair included

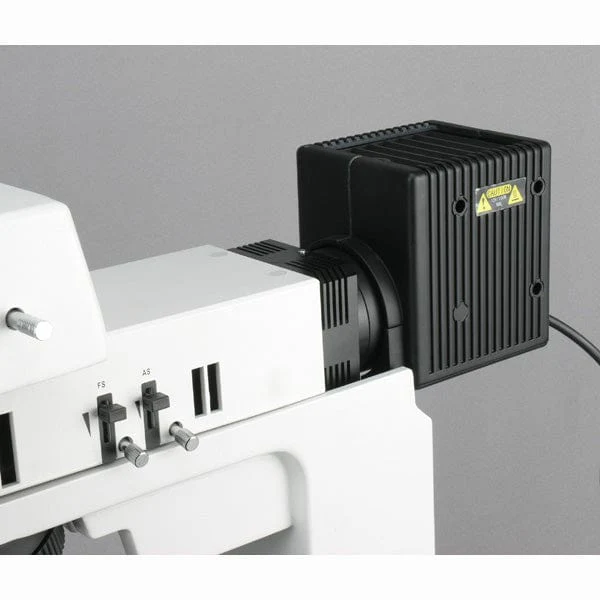

  • 100 Watt halogen reflected EPI-illumination system
