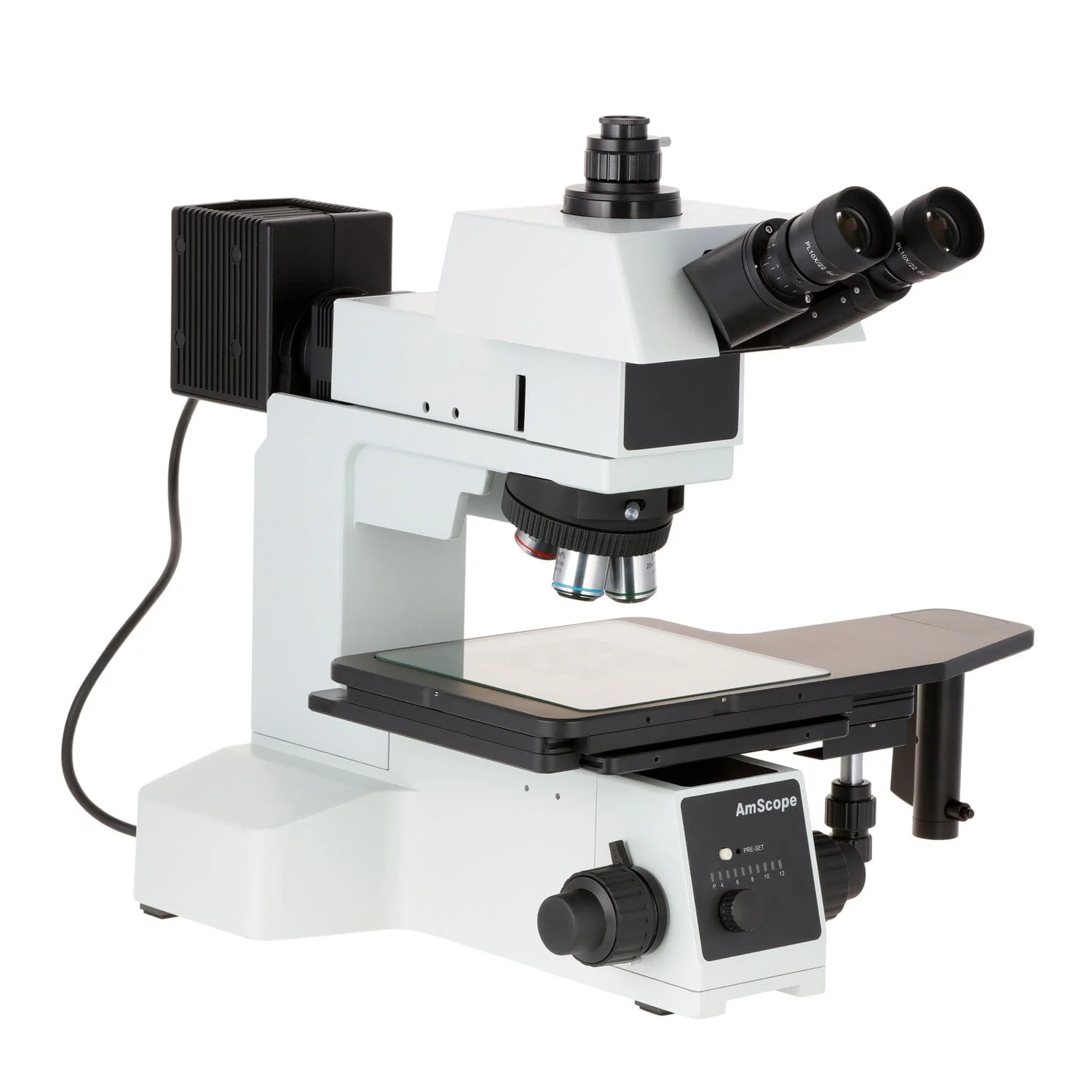

AmScope ME600 Series Large-format Metallurgical Trinocular Compound Microscope 50X-2500X Magnification with Darkfield, Polarization and 1080p HDMI Camera with Wi-fi

This is an advanced brightfield, darkfield and polarizing metallurgical microscopy system with 1080p WiFi digital camera. The microscope comes with a quintuple nosepiece, five infinity Plan objectives and a powerful 100W reflected Kohler illumination system, providing brightfield, darkfield and polarizing features. It offers nine metallurgical magnification settings (50X, 100X, 125X, 200X, 250X, 500X, 1000X, 1250X & 2500X). The 1080p camera can be connected to an HDMI monitor or TV for live 1080p video at a super-smooth 60fps. As an alternative solution, connect to the camera over WiFi for remote software control, with 25fps streaming. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection. For Mac and Linux, there is a lite version of the software which can capture video and still images, and includes limited processing features. This microscopy system is perfect for metallurgical labs and foundries for silicon wafer inspection, integrated circuit examination, quality control and R&D applications. It is an ideal instrument for metallurgical, mineral and crystal identification.

Features:

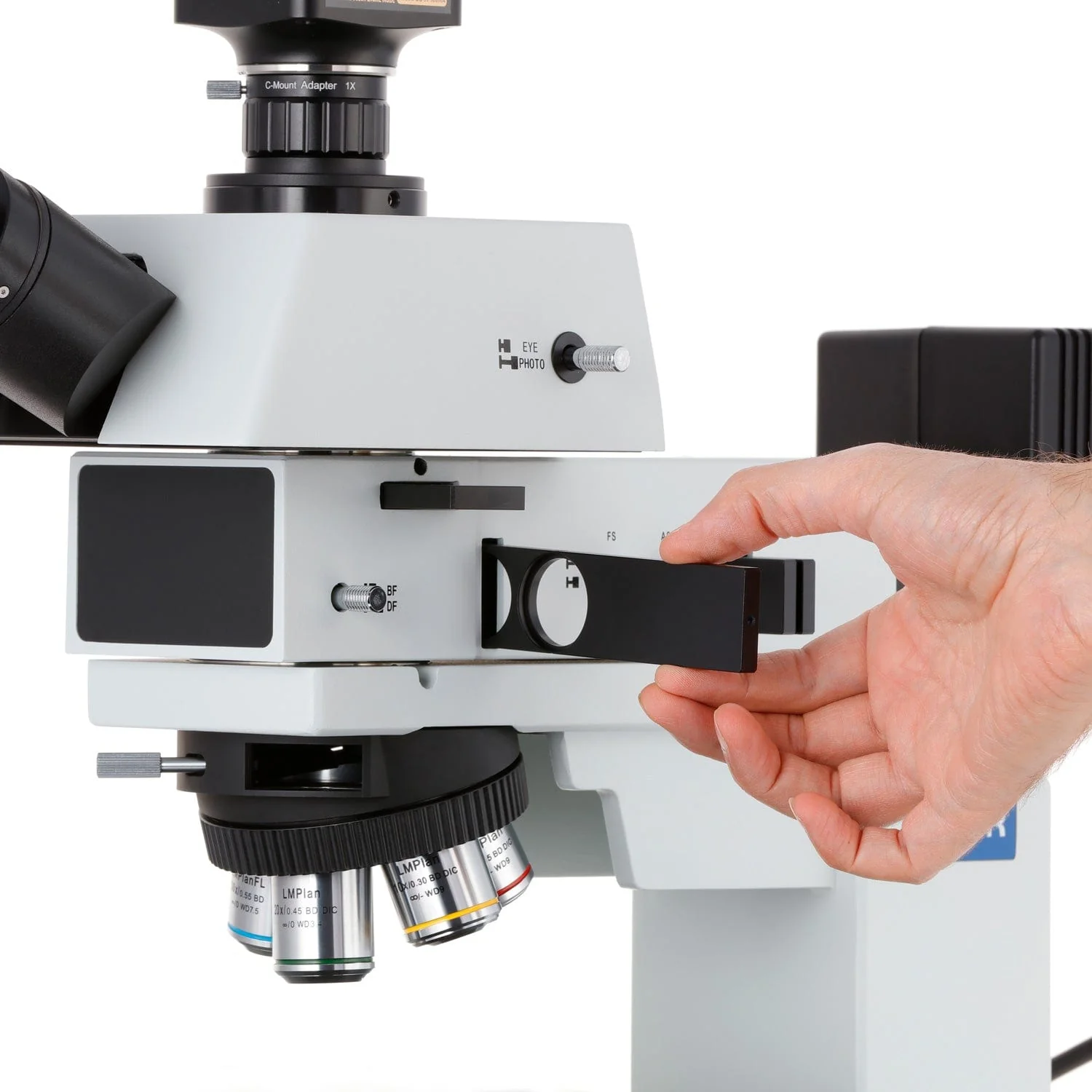

A brightfield, darkfield and polarizing metallurgical microscopy system with 100W Kohler illumination

Color corrected infinity optical system (CCIS)

Captures still images, records videos and streams live videos on your PC screen and Apple computer

Saves still images in BMP, TIFF, JPG, PICT, PTL or other formats

Measures lengths, angles, areas and etc. across images

Built-in reduction lens provides the same field of view on screen as through eyepieces

25 degree inclined 360 degree rotatable gemel trinocular head with vertical image

100% prismatic rate

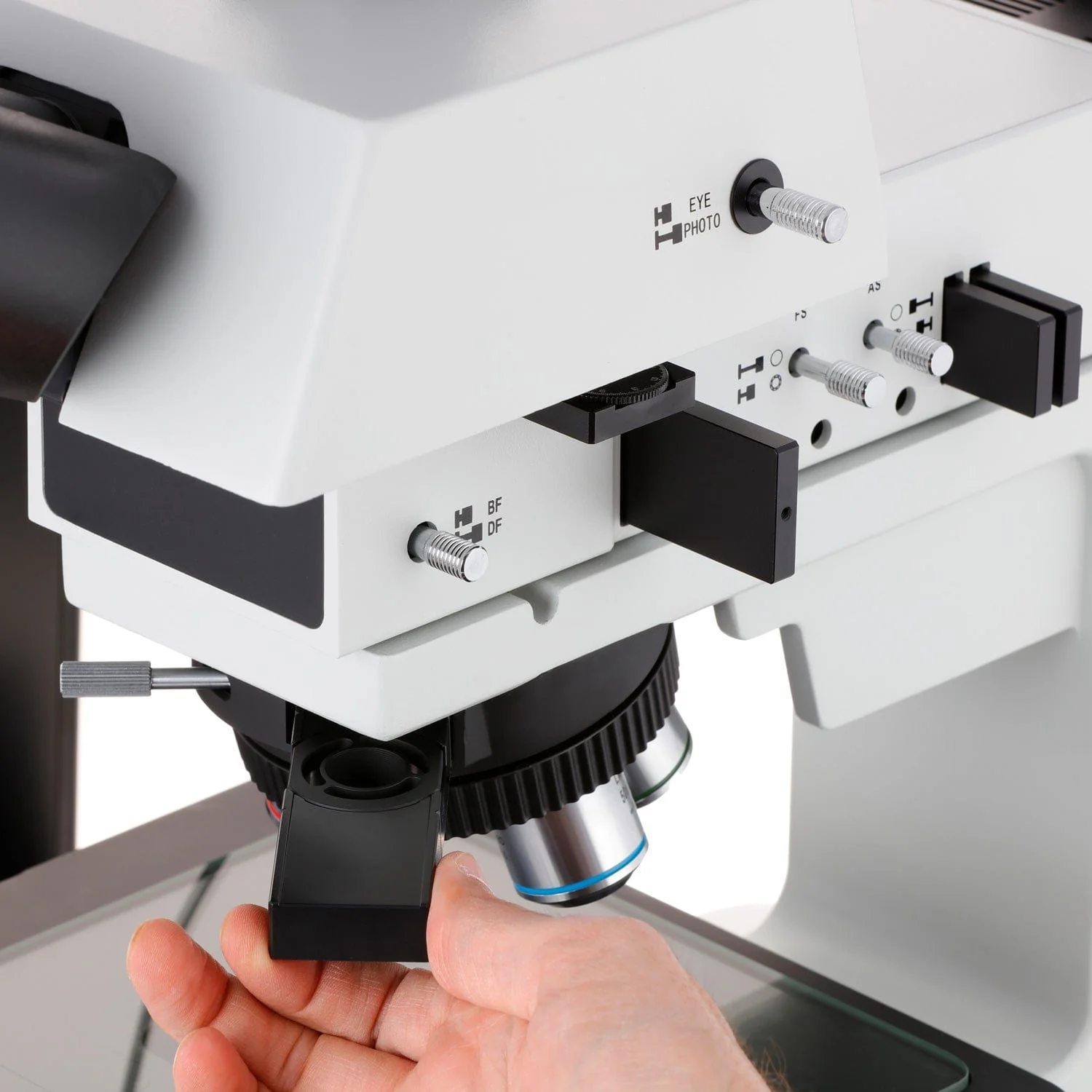

Quintuple nosepiece with brightfield (BF) and darkfield (DF)

Five infinity PLAN Achromatic objectives included

Eyepiece with 0.1mm micrometer and cross hair included

100 Watt halogen reflected EPI-illumination system

Digital controlled intensity adjustment and light reset

Nine metallurgical magnification settings: 50X, 100X, 125X, 200X, 250X, 500X, 1000X, 1250X & 2500X

Two sets of high point Plan eyepieces included

6" extremely large mechanical stage with clutch for swift moving control

Low position stage traveling controls

Full optical glass elements

Precise ground glass lenses

All metal mechanical parts

Coaxial coarse and fine focusing system

Dual focusing control knobs

Focusing tension control mechanism

Adjustable interpupillary distance

Adjustable diopters on both eye tubes

Solid metal frame construction with stain resistant enamel finish

Spare bulb, fuse, bottle of immersion oil, and dust cover included

Manufactured under restrict ISO 9001 quality control standards

Excellent five (5) year factory warranty

Specifications:

Optical system: color corrected infinity optical system (CCIS)

Eyepiece: PL10X high point Plan eyepieces with 22mm (in diameter) field of view and WH25X high point Plan eyepieces with 9mm (in diameter) field of view

Head: 25 degree inclined gemel trinocular with vertical image and 100% prismatic rate

Nosepiece: build-in quintuple nosepiece with BF and DF

Objective: infinity Plan Achromatic metallurgical 5X/0.17/12, 10X/0.25/6, 20X/0.4/5, 50X/0.7/2 and 100X/0.8/1 for both BF and DF

Focusing System: coaxial coarse and fine; moving range: 33mm, fine precision: 0.001mm

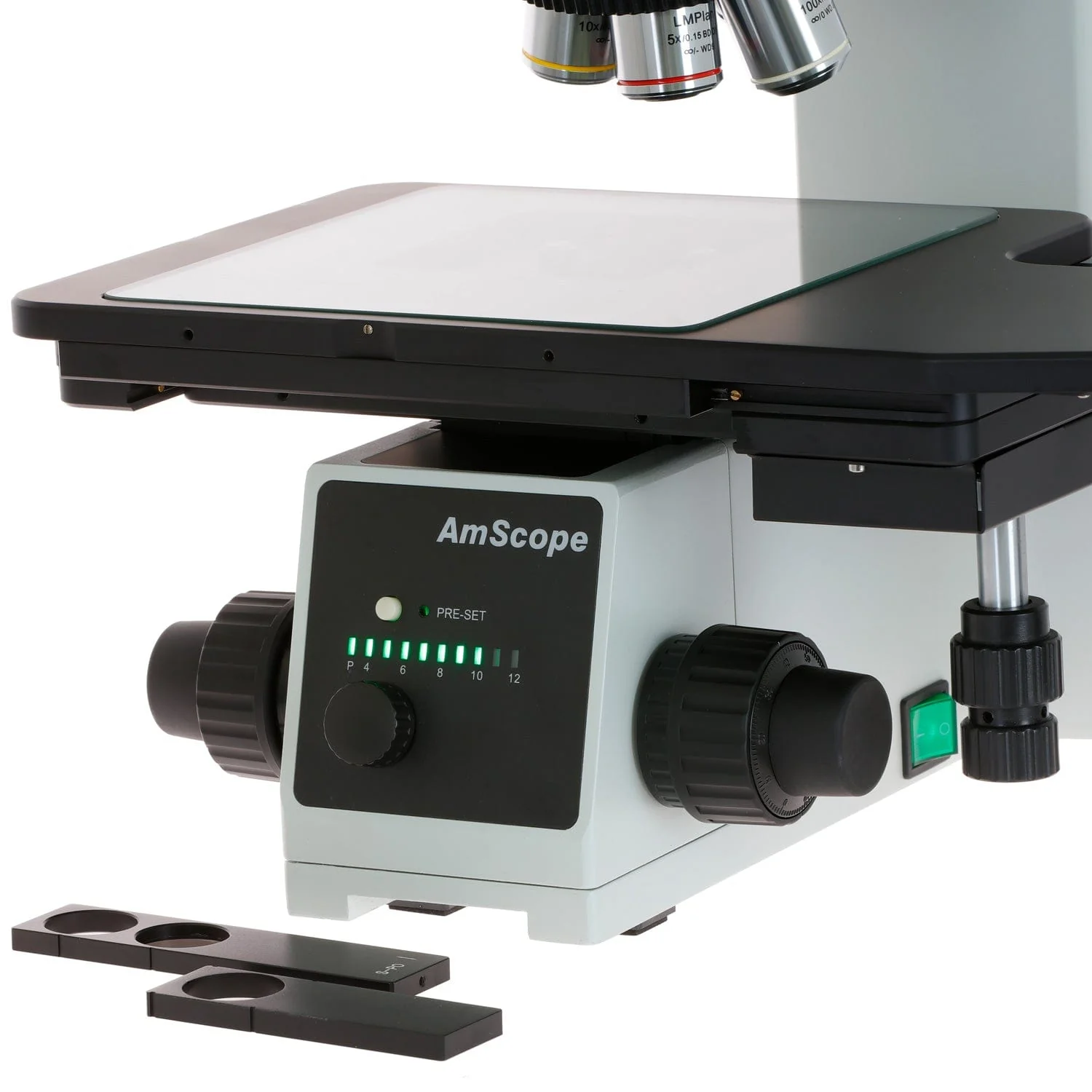

Stage: 6" rectangle mechanical stage; moving range: 158mm x 158mm; low hand adjustment and clutch for swift moving control

Illuminator: reflected Kohler illuminator with BF and DF; 12V/100W halogen; digital adjustment of brightness and light renew function

Power Supply: 110V-240V

Shipping Weight: 70 lbs

Packages: 2 (50 lbs + 20 lbs)

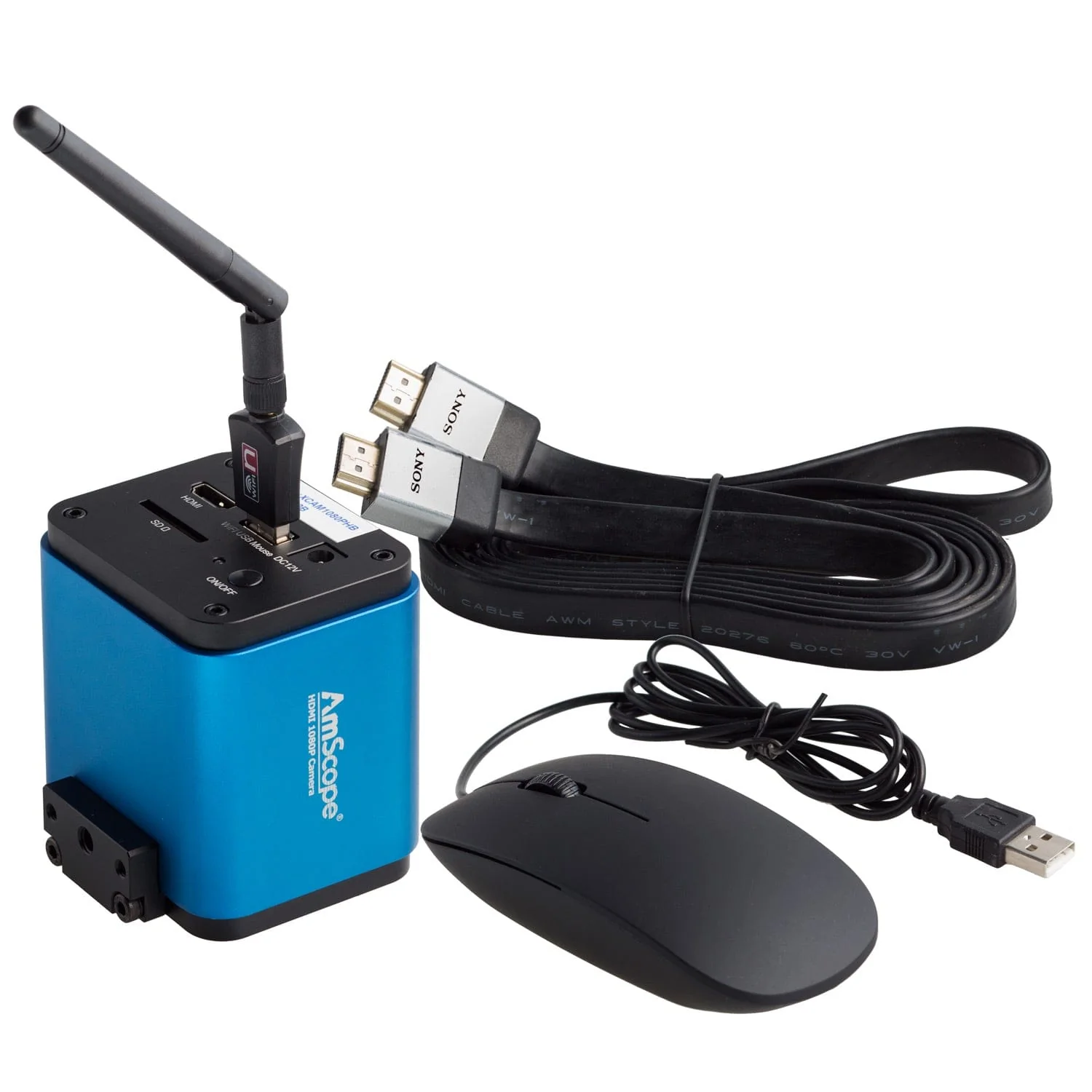

Camera Specifications:

Sensor: Sony IMX178 (color)

Sensor Type: CMOS

Sensor Size: 1/1.8" class

Pixel Size: 2.4

Still Resolution: 5MP

Video Resolution: 1080p

Frame Rate: 60fps @ 1920x1080 (HDMI), 25fps @ 1920x1080 (WiFi, SD)

Sensitivity: 425mV @ 1/30s

Connectivity: HDMI, WiFi, USB

Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux

Software Specifications:

OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+

Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB2.0 port or WiFi

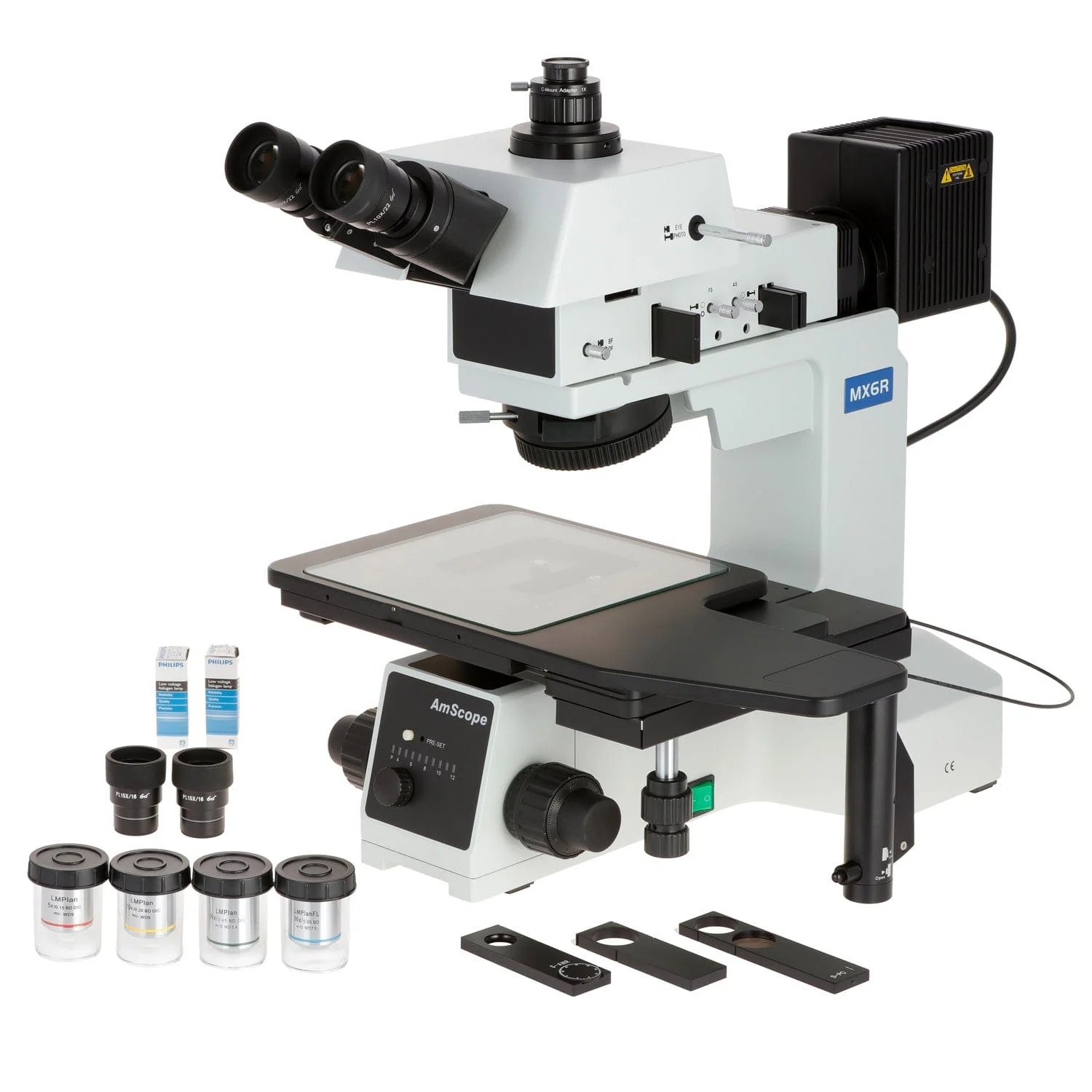

Packing List:

One Gemel Metallurgical Trinocular Infinity Microscope

One Microscope Body with Frame and Base

Two Pairs of Extreme Widefield Plan Eyepieces, PL10X and WH25X

Five Infinity Plan Achromatic Metallurgical Objectives, 5X, 10X, 20X, 50X & 100X

Microscope User's Manual

One HD Digital Camera

One USB Mouse

One USB WiFi antenna

One software disc
