AmScope B020 Series Lab Binocular Compound Microscope 40X-2500X Magnification with LED, 3D Stage, Slide and Cleaning Kit
AmScope B020 Series Lab Binocular Compound Microscope 40X-2500X Magnification with LED, 3D Stage, Slide and Cleaning Kit
Our new binocular compound microscope is designed for teaching demonstrations, clinical examinations and laboratory applications. It is a perfect microscope for professionals, teachers and students including those in medical school or with a major in biology. It comes with a Siedentopf binocular head, double layer mechanical stage with course & fine focusing, an LED illumination system, a microscope slide kit with 72 piece pre-cleaned blank slides and 100 piece coverslips, as well as a 3-piece microscope cleaning kit with cleaning liquid, cloth and brush. There are six magnification settings: 40X, 100X, 250X, 400X, 1000X & 2500X. This microscope is an ideal instrument for bacterial, biological, and pharmaceutical researches.
Features :
- 30 degree inclined 360 degree swiveling Siedentopf binocular head
- High quality precise optical glass elements
- Easy to attach a microscope camera or digital imager
- Six magnification settings, 40X, 100X, 250X, 400X, 1000X & 2500X
- Four Achromatic objectives, DIN 4X, 10X, 40X(S), 100X(S,Oil)
- Two pairs of widefield eyepieces: WF10X and WF25X
- Adjustable interpupillary distance
- Adjustable ocular diopter
- Variable intensity illumination
- Coaxial coarse and fine focus adjustment
- Focusing knobs are on both sides
- Stage upward moving lock protects objectives and slides
- Stain-resistant double layer mechanical stage
- NA1.25 Abbe Condenser with iris diaphragm & filters
- Rack and pinion adjustment condenser
- Manufactured under ISO 9001 Quality Control Standard
- Excellent Five (5) Year Manufacturer Warranty
Specifications :
- Eyepieces: widefield, WF10X and WF25X
- Objectives: Achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil)
- Head: 30 degree inclined 360 degree swiveling binocular
- Interpupillary distance: 2-1/8" - 3-1/8" (53mm - 77mm)
- Adjustable ocular diopter
- Nosepiece: revolving quadruple
- Mechanical Stage: 3-D double layer
- Size: 4-5/8" x 5" (118mm x 127mm)
- Travel Range (X-Y): 2-13/16" x 1-3/16" (70mm x 30mm) - Condenser: NA1.25 Abbe condenser with iris diaphragm
- Illumination: LED light, transmitted, intensity adjustable, GS and CE approved
- Focusing: coaxial coarse & fine knobs on both sides
- Power Supply: 100-240VAC, 50/60Hz, AC/DC adapter (UL approved) Included
- Dimension: 11" x 7" x 13-3/4" (280mm x 178mm x 350mm)
Packing List:
- One Siedentopf Binocular Microscope Head
- One Microscope Body Frame with Double Layer Mechanical Stage and LED Illumination
- Four DIN Standard Objectives, 4X, 10X, 40X and 100X
- One Pair of Widefield 10X Eyepieces
- One Pair of Widefield 25X Eyepieces
- Blue Color Filter
- Dust Cover
- Sample Immersion Oil
- User's Manual Download

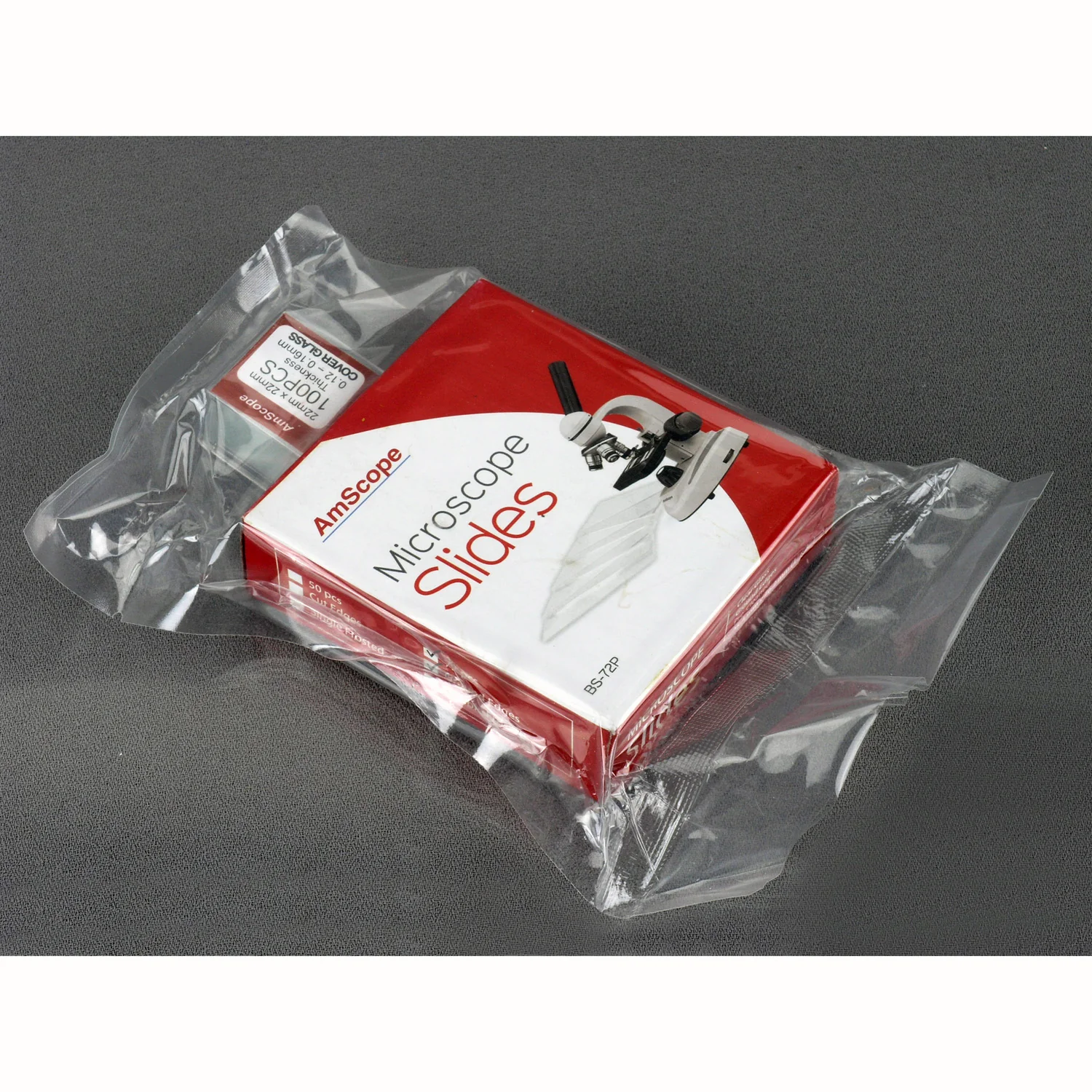

- Set of 72 Piece Pre-cleaned Blank Microscope Slides and 100 Piece Coverslips

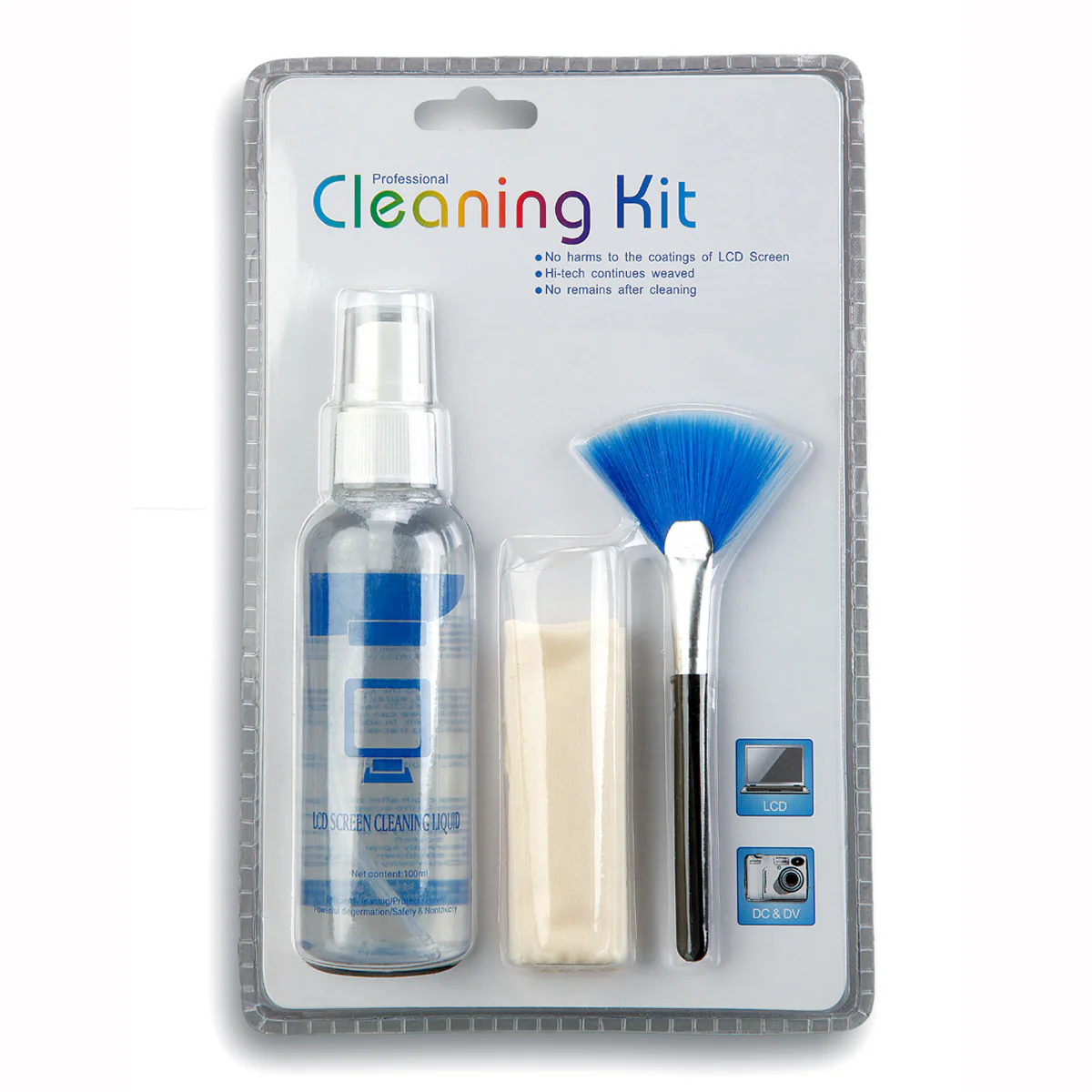

- 3-Piece Microscope Cleaning Kit with Cleaning Liquid, Cloth and Brush
- Net weight: 14 lbs
- Shipping weight: 16 lbs
Original: $329.99
-65%$329.99
$115.50
Description
Our new binocular compound microscope is designed for teaching demonstrations, clinical examinations and laboratory applications. It is a perfect microscope for professionals, teachers and students including those in medical school or with a major in biology. It comes with a Siedentopf binocular head, double layer mechanical stage with course & fine focusing, an LED illumination system, a microscope slide kit with 72 piece pre-cleaned blank slides and 100 piece coverslips, as well as a 3-piece microscope cleaning kit with cleaning liquid, cloth and brush. There are six magnification settings: 40X, 100X, 250X, 400X, 1000X & 2500X. This microscope is an ideal instrument for bacterial, biological, and pharmaceutical researches.
Features :
- 30 degree inclined 360 degree swiveling Siedentopf binocular head
- High quality precise optical glass elements
- Easy to attach a microscope camera or digital imager
- Six magnification settings, 40X, 100X, 250X, 400X, 1000X & 2500X
- Four Achromatic objectives, DIN 4X, 10X, 40X(S), 100X(S,Oil)
- Two pairs of widefield eyepieces: WF10X and WF25X
- Adjustable interpupillary distance
- Adjustable ocular diopter
- Variable intensity illumination
- Coaxial coarse and fine focus adjustment
- Focusing knobs are on both sides
- Stage upward moving lock protects objectives and slides
- Stain-resistant double layer mechanical stage
- NA1.25 Abbe Condenser with iris diaphragm & filters
- Rack and pinion adjustment condenser
- Manufactured under ISO 9001 Quality Control Standard
- Excellent Five (5) Year Manufacturer Warranty
Specifications :
- Eyepieces: widefield, WF10X and WF25X
- Objectives: Achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil)
- Head: 30 degree inclined 360 degree swiveling binocular
- Interpupillary distance: 2-1/8" - 3-1/8" (53mm - 77mm)
- Adjustable ocular diopter
- Nosepiece: revolving quadruple
- Mechanical Stage: 3-D double layer
- Size: 4-5/8" x 5" (118mm x 127mm)
- Travel Range (X-Y): 2-13/16" x 1-3/16" (70mm x 30mm) - Condenser: NA1.25 Abbe condenser with iris diaphragm
- Illumination: LED light, transmitted, intensity adjustable, GS and CE approved
- Focusing: coaxial coarse & fine knobs on both sides
- Power Supply: 100-240VAC, 50/60Hz, AC/DC adapter (UL approved) Included
- Dimension: 11" x 7" x 13-3/4" (280mm x 178mm x 350mm)
Packing List:
- One Siedentopf Binocular Microscope Head
- One Microscope Body Frame with Double Layer Mechanical Stage and LED Illumination
- Four DIN Standard Objectives, 4X, 10X, 40X and 100X
- One Pair of Widefield 10X Eyepieces
- One Pair of Widefield 25X Eyepieces
- Blue Color Filter
- Dust Cover
- Sample Immersion Oil
- User's Manual Download
- Set of 72 Piece Pre-cleaned Blank Microscope Slides and 100 Piece Coverslips
- 3-Piece Microscope Cleaning Kit with Cleaning Liquid, Cloth and Brush
- Net weight: 14 lbs
- Shipping weight: 16 lbs
