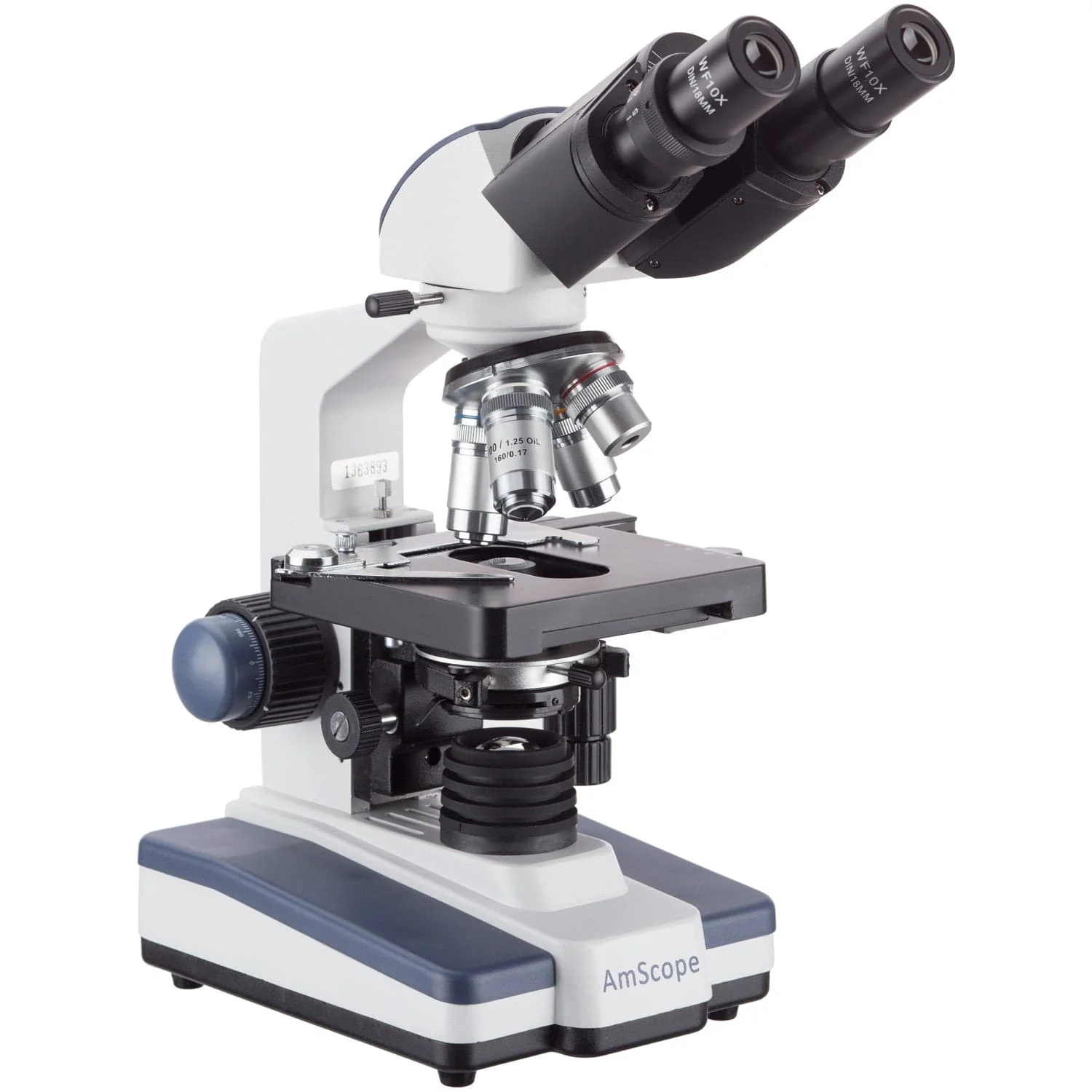

AmScope B120 Series Binocular Compound Microscope 40X-2500X Magnification with LED, Siedentopf Head, 50pc Blank Slides and 16MP USB3 Digital Camera

Our new binocular compound microscope is designed for teaching demonstrations, clinical examinations and laboratory applications. It is a perfect microscope for teachers and students including those in medical school or with a major in biology. It comes with a Siedentopf binocular head, double layer mechanical stage with coarse & fine focusing, an LED illumination system, and a pack of 50 blank slides with 100 coverslips. There are six magnification settings: 40X, 100X, 250X, 400X, 1000X & 2500X. This microscope is an ideal instrument for bacterial, biological, and pharmaceutical researches.

The 16MP USB3.0 digital camera captures still images and video, and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features.

Features :

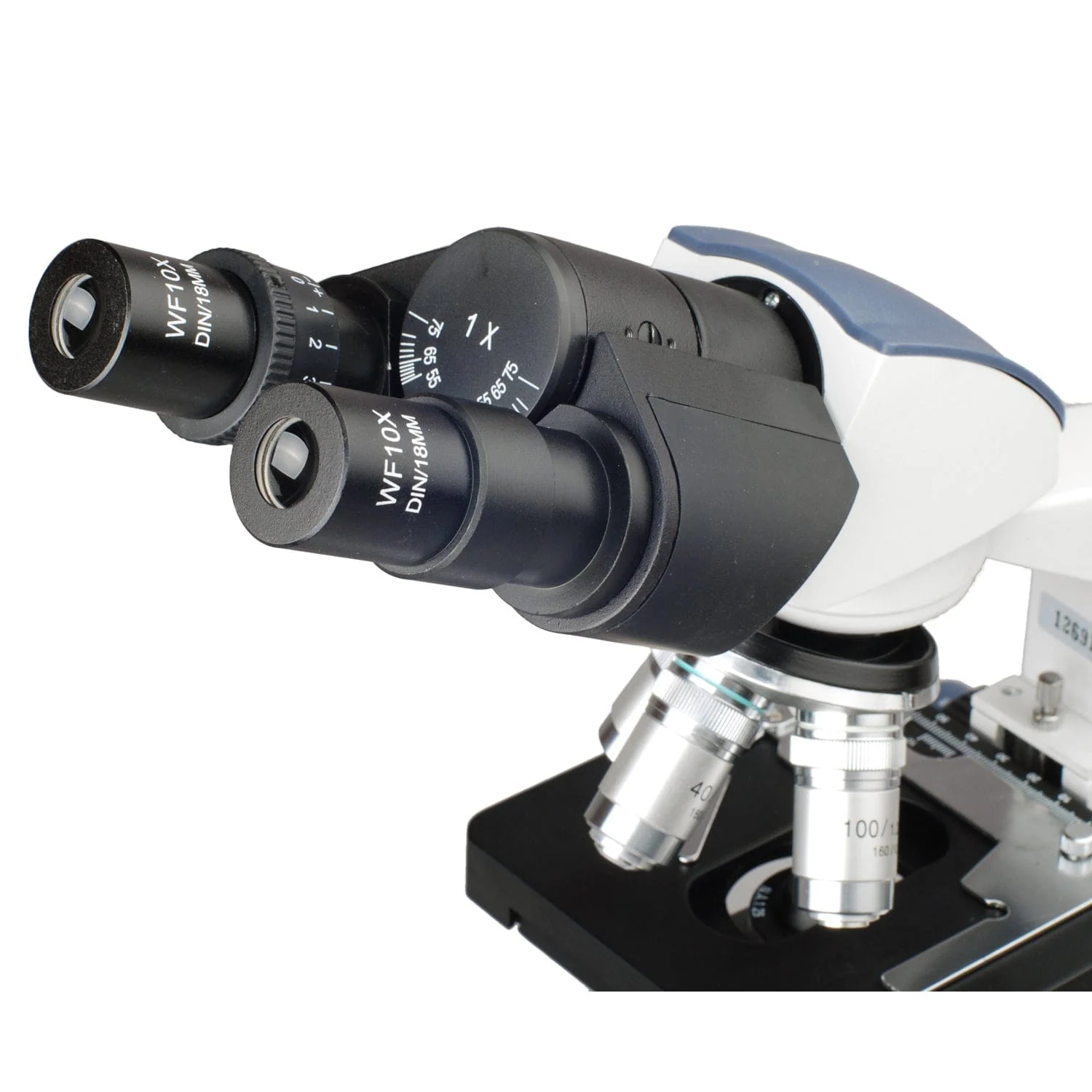

30 degree inclined 360 degree swiveling Siedentopf binocular head

High quality precise optical glass elements

Easy to attach a microscope camera or digital imager

Six magnification settings, 40X, 100X, 250X, 400X, 1000X & 2500X

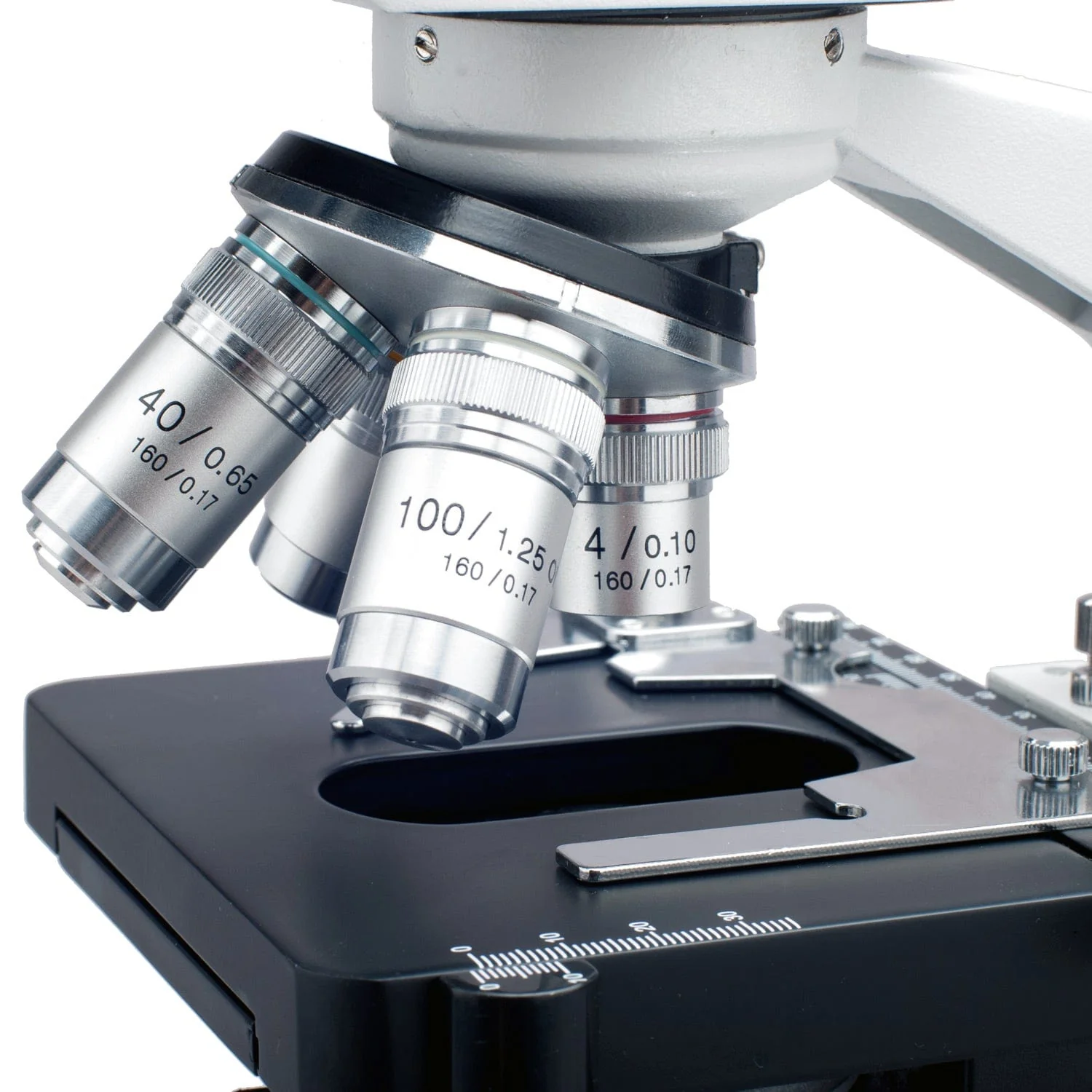

Four Achromatic objectives, DIN 4X, 10X, 40X(S), 100X(S,Oil)

Two pairs of widefield eyepieces: WF10X and WF25X

Adjustable interpupillary distance

Adjustable ocular diopter

Variable intensity illumination

Coaxial coarse and fine focus adjustment

Focusing knobs are on both sides

Stage upward moving lock protects objectives and slides

Stain-resistant double layer mechanical stage

NA1.25 Abbe Condenser with iris diaphragm & filters

Rack and pinion adjustment condenser

Specifications :

Eyepieces: widefield, WF10X and WF25X

Objectives: Achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil)

Head: 30 degree inclined 360 degree swiveling binocular

Interpupillary distance: 2-1/8" - 3-1/8" (53mm - 77mm)

Adjustable ocular diopter

Nosepiece: revolving quadruple

Mechanical Stage: 3-D double layer

- Size: 4-5/8" x 5" (118mm x 127mm)

- Travel Range (X-Y): 70mm x 21mm

Condenser: NA1.25 Abbe condenser with iris diaphragm

Illumination: LED light, transmitted, intensity adjustable, GS and CE approved

Focusing: coaxial coarse & fine knobs on both sides

Power Supply: 100-240VAC, 50/60Hz, AC/DC adapter (UL approved) Included

Dimension: 11" x 7" x 13-3/4" (280mm x 178mm x 350mm)

Camera Specifications:

Sensor: Aptina (color)

Sensor Type: CMOS

Sensor Size: 6.18x4.66mm

Pixel Size: 1.335

Resolution: 16.0MP

Frame Rate: 26fps @ 1536x1160, 15fps @ 2320x1740, 6fps @ 4632x3488

Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux

Software Specifications:

OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+

Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB3.0 port for maximum speed

Packing List :

One Siedentopf Binocular Microscope Head

One Microscope Body Frame with Double Layer Mechanical Stage and LED Illumination

Four DIN Standard Objectives, 4X, 10X, 40X and 100X

One Pair of Widefield 10X Eyepieces

One Pair of Widefield 25X Eyepieces

One Blue Color Filter

One Dust Cover

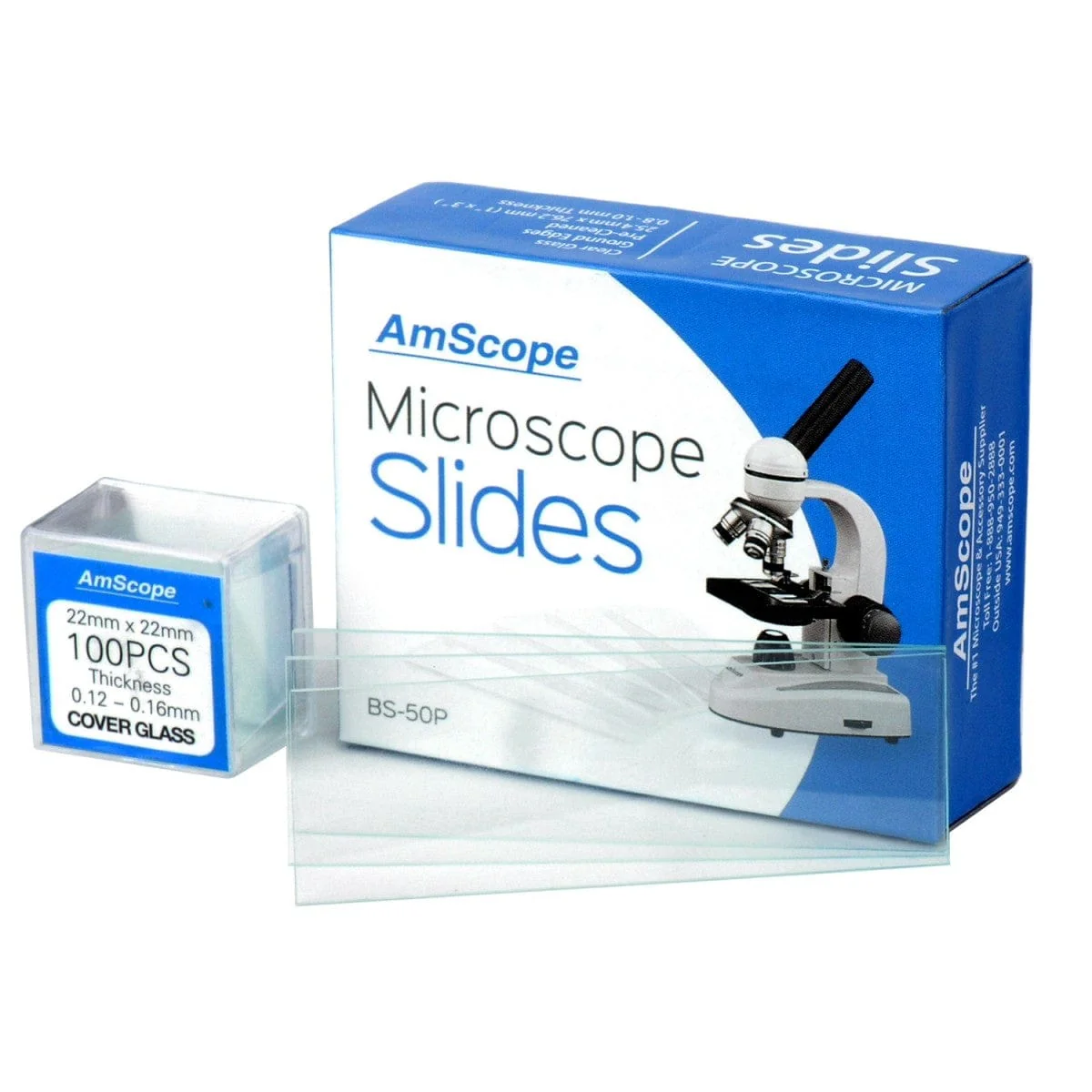

50PC Blank Standard Microscope Slides

100PC Coverslips

Sample Immersion Oil

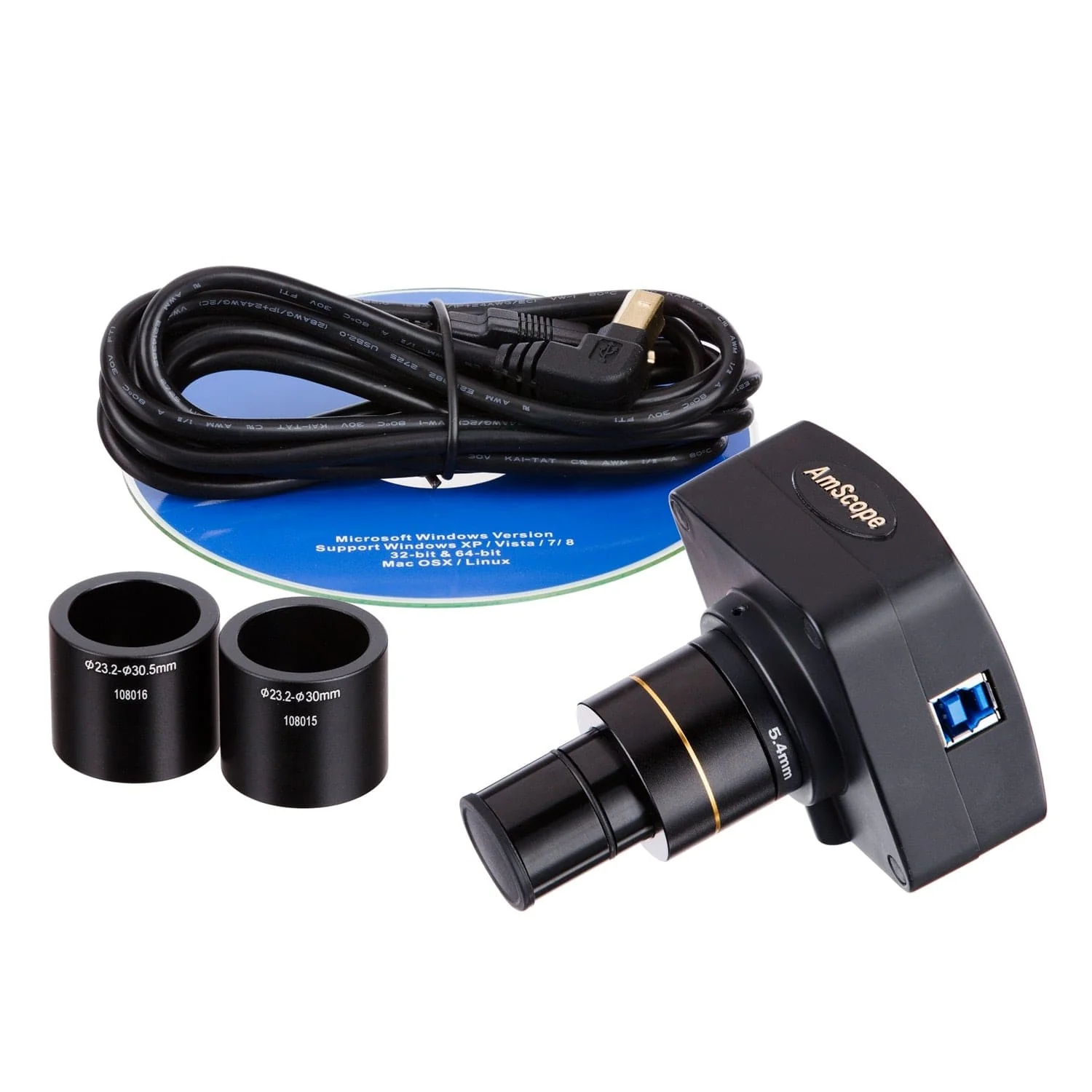

One 16MP USB3.0 Digital Camera with a reduction lense

Two sizing adapters (23-30mm, 23-30.5mm)

One USB cable

User's Manual

Net weight: 10 lbs

Shipping weight: 12 lbs
