AmScope IN200 Series Inverted Tissue Culture Trinocular Compound Microscope 40X-800X Magnification

This brand new professional high power trinocular inverted microscope provides high quality crisp clear sharp images. It offers eleven magnification settings, 40X, 64X, 80X, 100X, 160X, 200X, 250X, 400X, 500X, 640X and 800X, allowing you to observe directly specimen in culture flasks and/or petri dishes. It comes with widefield plan optics, a 30 degree inclined 360 degree swiveling trinocular head that enables to add photographic or video capability. It is a perfect instrument for Clinics, Vets, Doctors and Students to view living biological tissue cultures in dishes and examine specimens in liquid from the bottom of containers.

Features :

• High quality professional high power tissue culture microscope
• Fully coated optical system with high resolution
• Crystal clear sharp images
• High quality professional grade microscope
• Perfect for clinics, vets, doctors, researchers
• 30 degree inclined 360 degree swiveling sliding trinocular head
• Upright photo port for photographic/video capability
• Adapter for digital camera/video/camcorder attachments (optional)

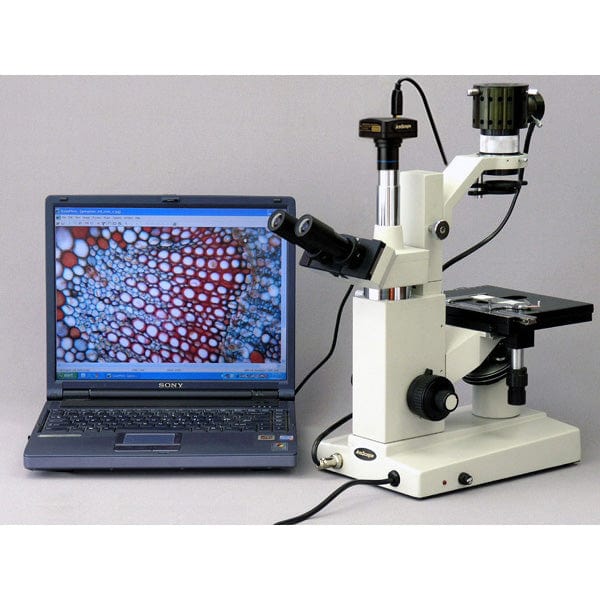

• CCD camera with software for computer display (optional)

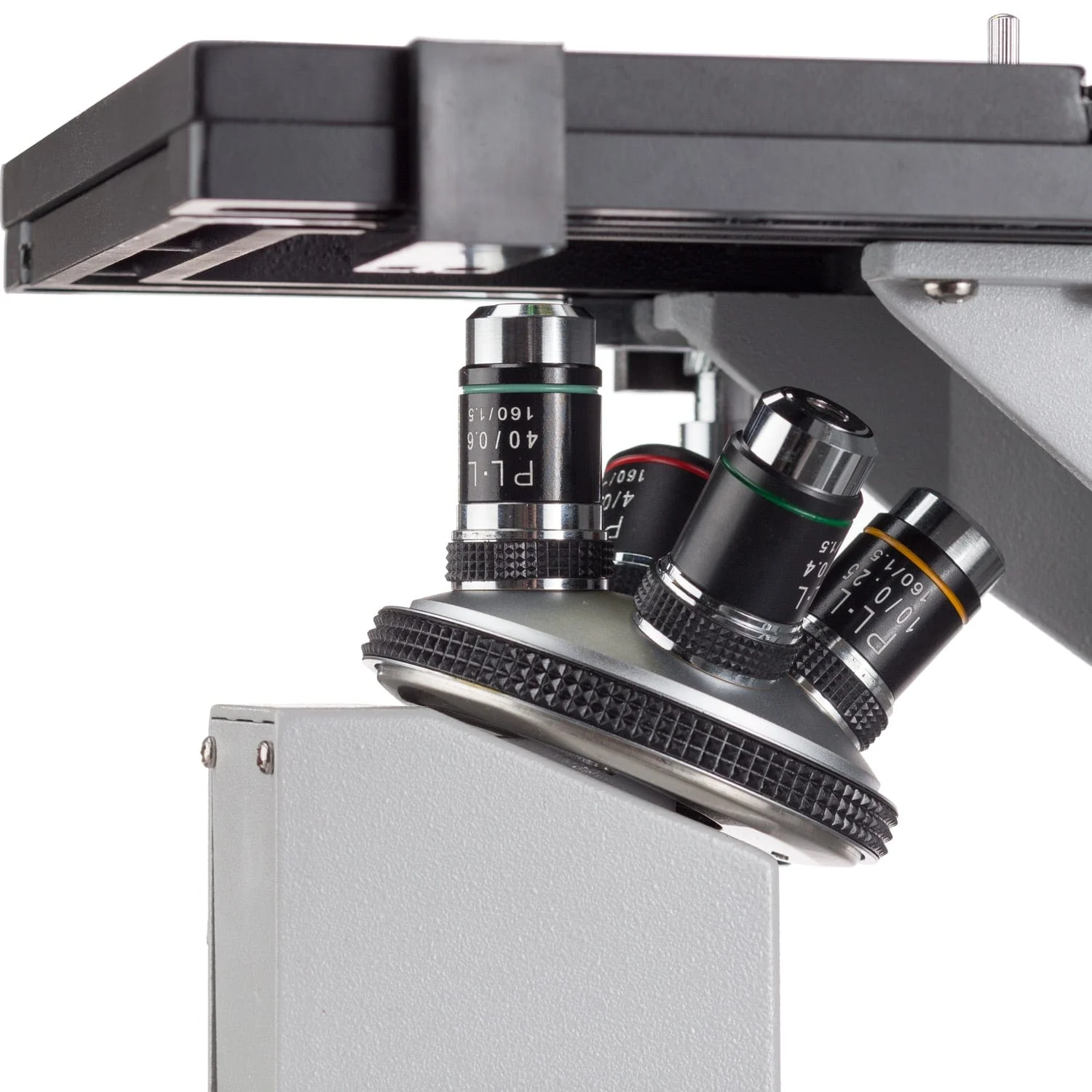

• Four DIN plan long working distance objectives
• Two sets of wide field eyepiece included
• Eleven magnification settings 40X, 64X, 80X, 100X, 160X, 200X, 250X, 400X, 500X, 640X and 800X
• Above-stage condenser with moving and focusing knobs and swing-out filters
• Stage moving-stop mechanism to protect slides and objectives
• Diopter adjustment on both oculars

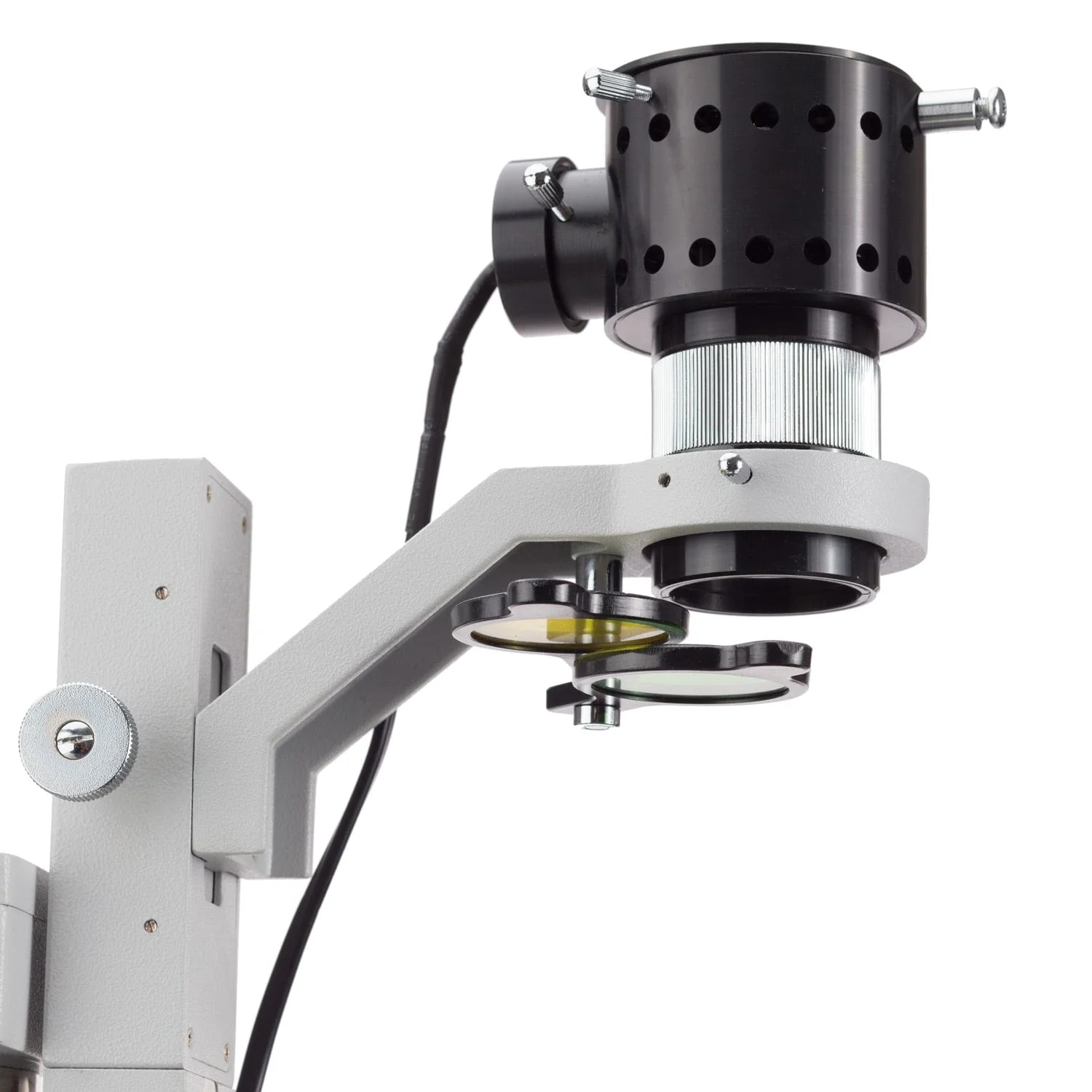

• Top light house with filters
• Universal/standard photo port
• Spare bulb, fuse and dust cover
• Extra large 3-D double layer mechanical stage with stain resistant finish
• Low position coaxial stage movement control knobs
• Coaxial coarse & fine focusing with CA knob tension control
• Built-in halogen illumination system with variable brightness
• Dual side mounted focusing controls
• Four DIN achromatic coated objectives
• Full optical glass elements
• Precise ground glass lens
• All metal mechanical components
• Adjustable interpupillary distance
• Adjustable diopters on both oculars
• Rugged cast alloy frame and stand with stain resistant enamel finish
• Manufactured under ISO 9001 quality control standard
• Excellent FIVE (5) YEAR factory warranty



Specifications :

• Nosepiece: quadruple
• Focusing range: 1-9/16" (40mm)
• Interpupillary adjustment mechanisms: 2-3/16" - 3-0" (55 - 75mm)
• Head: binocular anti-mould viewing head inclined at 30 degree
• Eyepiece: Plan WF10X (18mm field of view), WF16X and WF20X
• Objectives: 4X (0.1 NA), 10X (0.25 NA), 25X (0.4 NA), 40X (0.60 NA)
• Stage dimensions: 7-1/2"x 5-11/16" (190x145mm)
• Stage traveling range: 3-0"x2-0" (75x50mm)
• Vernier divesion: 0.004" (0.1mm)
• Filters: 1-11/16", yellow and green
• Illumination: halogen bulb, 12V/50W
• Illumination elevating range: 25/32" (20mm)
• Power supply: 115V, CE certified
• Packing dimensions: 17"x10"x21"
• Net weight: 22 lbs



Packing List :

• One Trinocular Sliding Head
• One Microscope Body with Frame and Base
• Four Plan Achromatic DIN Objectives, 4X, 10X, 25X and 40X
• One Pair of Widefield 10X Plan Eyepieces
• One Pair of Widefield 16X Eyepieces
• One Pair of Widefield 20X Eyepieces
• Color Filters
• One Microscope Spare Bulb
• Immersion Oil
• Dust Cover
• User's Manual Download
• Shipping Weight: 28 lbs
