AmScope B600 Series Advanced Turret Phase Contrast Binocular Compound Microscope 40X-1600X Magnification

This professional binocular microscope offers turret phase contrast features. It is designed for advanced applications in clinical offices and research laboratories. This microscope comes with a 30 degree inclined 360 degree swiveling compensation free binocular head, 3-D mechanical stage and intensity-variable halogen illumination system. It offers eight phase contrast settings (100X-160X-200X-320X-400X-640X-1000X-1600X) and eight bright field magnification powers (40X-64X-100X-160X-400X-640X-1000X-1600X). The turret phase contrast kit includes a phase contrast condenser, CT lens and a set of phase contrast 10X, 20X, 40X and 100X PLAN objectives.

Features:

• A Phase Contrast and Bright Field Microscopy System
• Perfect for Clinics, Vets, Doctors and Researchers
• Quadruple, Reversed, Extra-Large Nosepiece with Wide, Knurled Grip for Easy Operation
• 30 Degree Inclined 360 Degree Swiveling Compensation-free Binocular Head

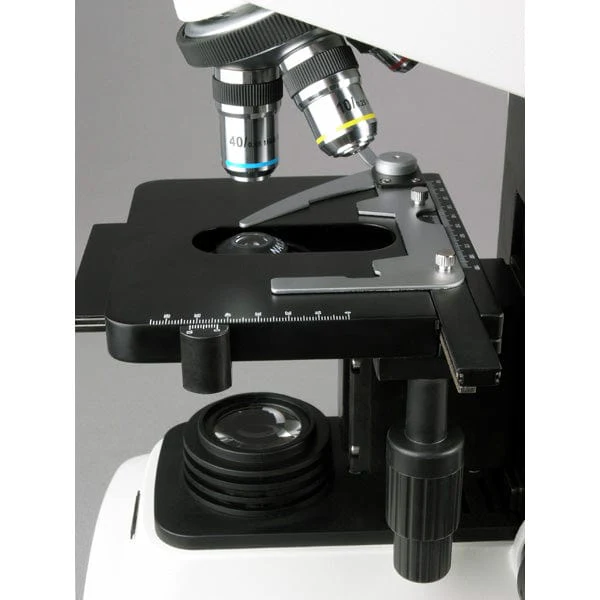

• Large 3-D Double Layer Mechanical Stage with Stain Resistant Finish
• Low Position Coaxial Stage Movement Control Knobs
• Coaxial Coarse & Fine Focusing with CA Knob Tension Control
• Fully Coated Optical System with High Resolution
• Crystal Clear Sharp Images
• High Quality Professional Grade Microscope
• Eight Bright Field Magnification Settings: 40X-64X-100X-160X-400X-640X-1000X-1600X
• Eight Phase Contrast Magnification Settings: 100X-160X-200X-320X-400X-640X-1000X-1600X
• Upward Stage Stopper to Protect Slides and Objectives
• Abbe Condenser with Iris Diaphragm & Swing-In Color Filter
• Rack and Pinion Control for Condenser
• Built-in Halogen Illumination System with Variable Brightness
• Focusing Control Knobs on Both Sides
• Four DIN Achromatic Objectives
• Three Phase Contrast DIN Achromatic Plan Objectives
• Two Sets of Eyepiece Included
• Full Optical Glass Elements
• Precise Ground Glass Lens
• All Metal Mechanical Components
• Adjustable Interpupillary Distance
• Adjustable Diopters on Both Oculars
• Rugged Cast Alloy Frame and Stand with Stain Resistant Enamel Finish
• Spare Bulb, Fuse and Immersion Oil Included
• Plan-Concave Mirror Included
• Manufactured under ISO 9001 Quality Control Standard.
• Excellent Five (5) Year Factory Warranty.



Specifications :

• Phase Contrast: Simple
• Nosepiece: ball bearing quadruple
• Mechanical Tube Length: 6-5/16" (160mm)
• Head: compensation free binocular inclined at 30 degree
• Wide-Field Eyepieces: WF10X & P16X
• Interpupillary Distance: 2-3/16" - 3" (55 - 75mm)
• Achromatic Objectives:
  4X (0.1), 10X (0.25), 40X (0.65, spring), 100X (1.25, spring, oil)
• Phase Contrast Plan Objectives:
  Plan PH 10X(0.25), PH 40X(0.65) & PH 100X(1.25) (160/0.17)
• Stage Dimensions: 5-1/2"x 6-5/16" (140x160mm)
• Stage Traveling Range: 2-3/4"x 2-0" (70x50mm)
• Focusing Range: 1-3/16" (30mm)
• Division of Fine Focusing: 0.0000787" (0.002mm)
• Abbe Condenser: NA=1.25 with rack and pinion focusing control
• Microscope Dimensions: 10" x 9" x 16"
• Illumination: 6V/20W halogen lamp.
• Power Supply: 110V
• Accessories: 6V/20W spare halogen bulb, 2" plan-concave mirror,
  bottle of objective oil, and blue, green & yellow filters



Packing List :

• One Binocular Microscope with Frame and Base
• Four High Quality DIN Objectives, 4X, 10X, 40X and 100X
• One Pair of Widefield 10X Eyepieces
• One Pair of Widefield 16X Eyepieces
• One Complete Phase Contrast Kit
• One Dust Cover
• One Power Cord
• One 6V/20W Spare Halogen Bulb
• Color Filters
• Spare Fuses
• Bottle of Sample Immersion Oil
• User's Manual Download
• Shipping Weight: 40 lbs
