AmScope IN480 Series Inverted Infinity-corrected Phase-contrast Trinocular Compound Microscope 40X-1500X Magnification with Koehler Illumination and 5MP CCD Camera
AmScope IN480 Series Inverted Infinity-corrected Phase-contrast Trinocular Compound Microscope 40X-1500X Magnification with Koehler Illumination and 5MP CCD Camera

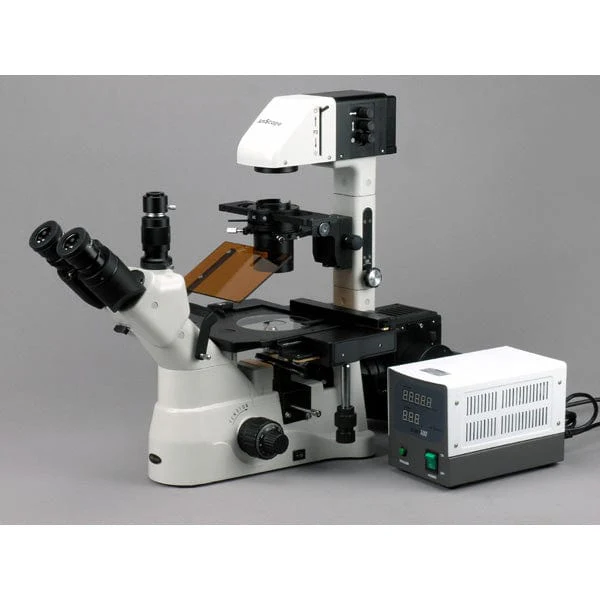

The IN480T-FL provides high-resolution optics and a versatile dual-illumination system with Koehler transmitted lighting for brightfield and phase-contrast, and wide-spectrum episcopic lighting for fluorescence. The stable and ergonomic inverted form accommodates larger specimen containers, with multiple specimen templates and mechanical stage controls to improve workflow.
The viewing head has a 45° incline and Siedentopf interpupillary adjustment for flexibility and comfort. The trinocular format provides a dedicated photo-port for mounting a microscopy camera for capturing photos or videos. A sliding shutter isolates the light path when using a camera, avoiding stray light from the oculars during fluorescence imaging.

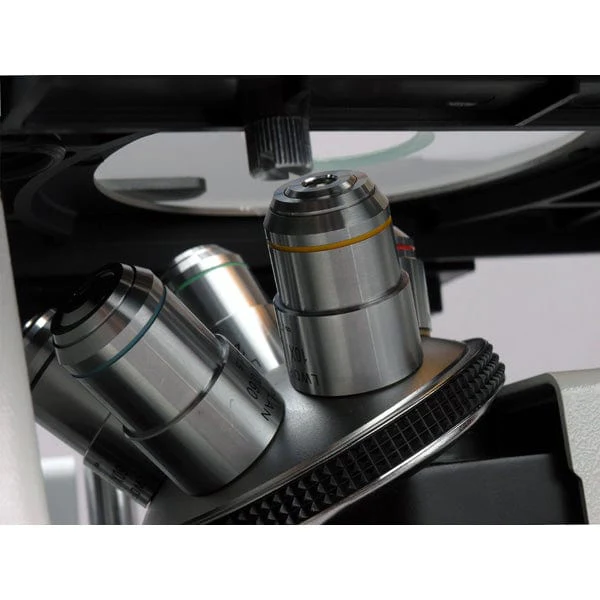

The infinity-corrected optical system eliminates optical errors when using filters and other in-line components, ensuring highly-precise images. Five brightfield objective lenses and two sets of eyepieces provide a wide magnification range from 40X to 1500X, with plan-achromatic corrections for high resolution, accurate colors, and edge-to-edge sharpness. Additionally, three phase-ring equipped objective lenses can be used for phase-contrast observation.

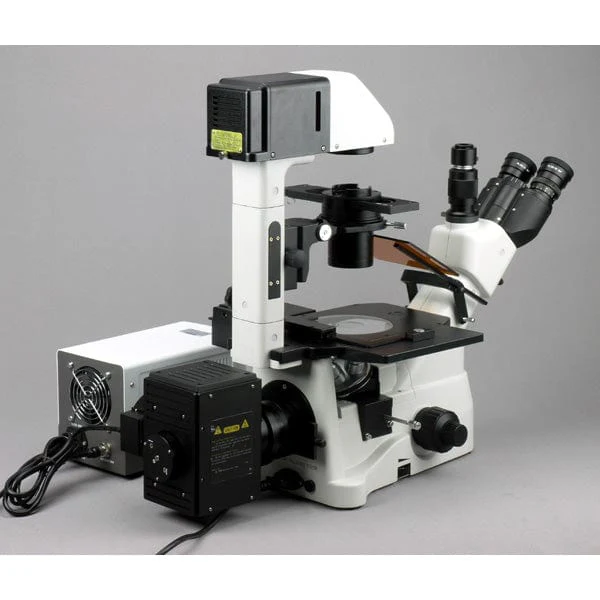

A 100W mercury-vapor episcopic illuminator provides wide-spectrum lighting for fluorescence excitation. Two filter blocks can be mounted and alternated during observation. Blue and green excitation blocks are included to cover a wide range of common fluorophores.

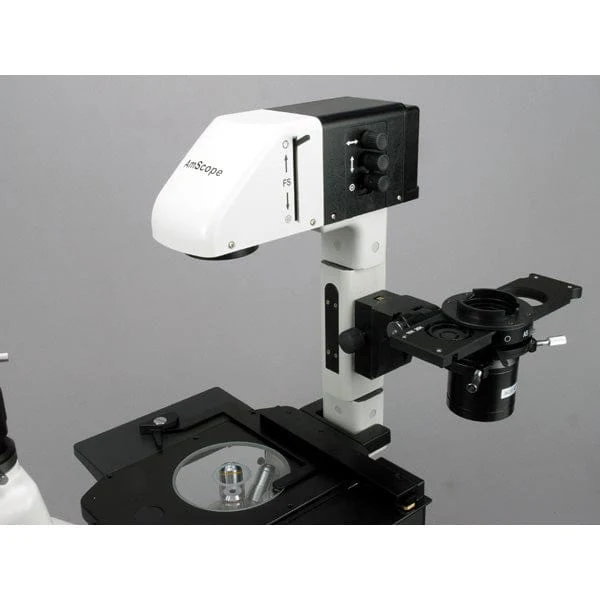

The Koehler transmitted illumination system consists of a centerable 30W halogen lamp, a field lens with iris, and a centerable, height-adjustable condenser with iris. The ability to center the lamp and condenser, along with the field and aperture diaphragms, allow for highly-efficient, optimized illumination for maximum resolution. Along with height adjustment, the condenser can be swung out of the light path. A slide-in annulus board provides two centerable phase-contrast annuli, as well as an open setting which can be used with colored filters for band-isolation or color-correction.
The highly-sensitive 5MP color CCD camera captures low-light still images and video, and allows you to view a live stream on your PC. The included Windows software offers image-development and measurement tools. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images.
This microscope operates on 90-240V wide-band voltage for use in multiple international regions.
Fluorescence
| Filters | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||
| Mercury HBO Excitation | ||||||||||||||||||
|
Mercury HBO lamps produce a wide spectrum of wavelengths, including ultraviolet. While this fluorescent light-source can excite fluorophores throughout its entire spectrum, there are peak wavelengths with optimal output. The included filter blocks will accommodate a wide range of fluorophores, although the nature of mercury arc lamps limits effectiveness outside of the peak wavelengths.
|
Specifications
| Optical System | Infinity-corrected | ||||||||
| Head | Trinocular, 45° incline | ||||||||
| Interpupillary Adjustment | Siedentopf compensation-free gemel, 50mm-76mm | ||||||||
| Ocular Diameter | 30mm | ||||||||
| Eyepieces | 10X FN22mm plan wide-field, 25X wide-field | ||||||||
| Photo-port | CX-type height-adjustable, 23mm tube | ||||||||
| Objective Turret | quintuple | ||||||||
| Focusing System |
|
||||||||
| Stage | fixed-height, mechanical X-Y translation | ||||||||
| Stage Dimensions | 160mm x 250mm stage extension: 70mm x 180mm |
||||||||
| Stage X-Y Travel Range | 120mm x 80mm | ||||||||
| Specimen Holders | Terasaki plate, Petri dish | ||||||||
| Transmitted Illumination | 6V 30W halogen variable intensity centerable lamp |
||||||||
| Condenser | NA 0.3, centerable | ||||||||
| Condenser Working Distance | 72mm maximum | ||||||||
| Phase Contrast Annuli | 4X/10X and 20X/40X | ||||||||
| Power | 90-240VAC 50/60Hz wide-band | ||||||||
Objective Lenses
| Magnification | Corrections | NA | Working Distance | Cover-glass Thickness |
|---|---|---|---|---|
| 4X | plan achromatic | 0.13 | 10.4mm | 1.5mm |
| 10X | plan achromatic | 0.25 | 7.30mm | 1.5mm |
| 20X | plan achromatic | 0.40 | 6.79mm | 1.5mm |
| 40X | plan achromatic | 0.60 | 3.08mm | 1.5mm |
| 60X | plan achromatic | 0.70 | 1.71mm | 1.5mm |
| 10X | phase-ring | 0.25 | 7.30mm | 1.5mm |
| 20X | phase-ring | 0.40 | 6.80mm | 1.5mm |
| 40X | phase-ring | 0.60 | 3.08mm | 1.5mm |
Magnification Chart
| Eyepiece | Objective | ||||
| 4X | 10X | 20X | 40X | 60X | |
| 10X | 40X | 100X | 200X | 400X | 600X |
| 25X | 100X | 250X | 500X | 1000X | 1500X |
Camera Specifications
| Sensor Type | CCD (color) |
| Sensor Size | 2/3" format (9.74mm x 7.96mm) |
| Pixels | 5M |
| Pixel Size | 3.4µm x 3.4µm |
| Transfer Method | Interline Progressive Scan (Global Shutter) |
| Sensitivity | 280mV @ 1/30s (f5.6) |
| Smear | -92dB |
| Dark Noise | 16mV @ 1/30s |
| Frame Rate(s) | 3fps @ 2580x1944 10fps @ 1280x932 |
| Connectivity | USB 2.0 |
| Lens-mount | C-mount |
| Compensating Lens | — |
| Cooling Type | Peltier Thermoelectric |
| Cooling | -30°C below ambient |
Software
| OS Requirements | Windows (32/64 bit) XP/Vista/7/8/10 | ||||||
|---|---|---|---|---|---|---|---|
| Features |
|

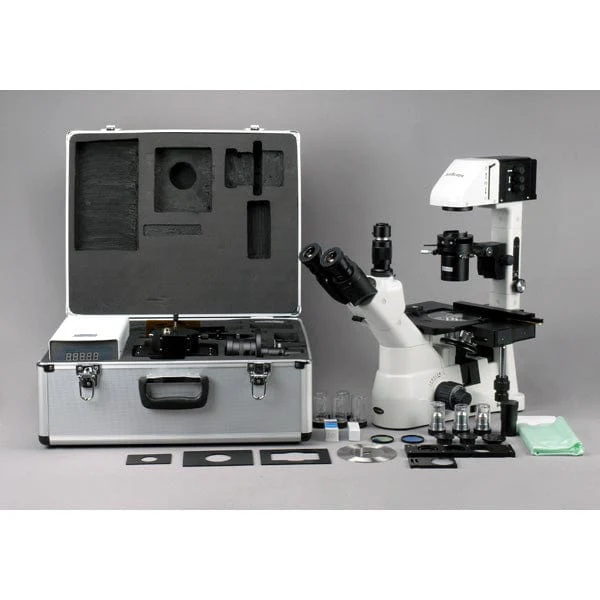

Contents
Original: $10,957.99
-65%$10,957.99
$3,835.30
