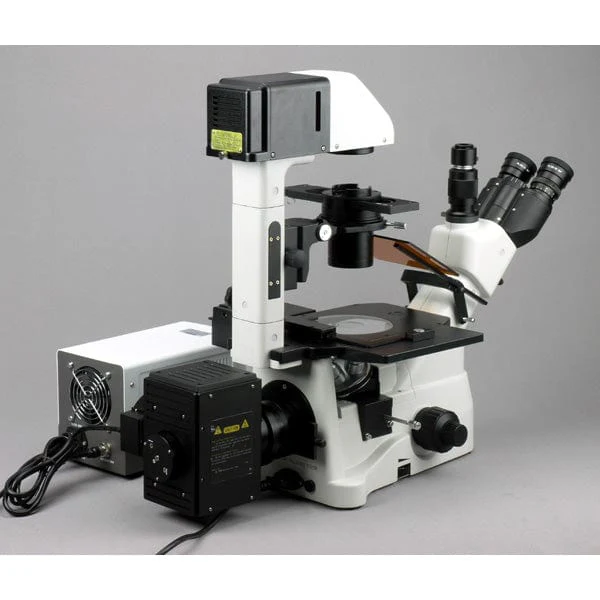

AmScope IN480 Series Inverted Infinity-corrected Phase-contrast Fluorescence Trinocular Compound Microscope 40X-900X Magnification with Koehler Illumination and 3MP SCMOS Camera

This is a brand new professional inverted trinocular phase contrast fluorescence microscope with 1.3MP fluorescent image system, offering crystal clear high quality images and advanced features. The microscope comes with a complete fluorescence kit, color corrected infinity optical system, and super large working distance condenser. Its high eye-point PLAN eyepieces, infinity large working distance Achromatic and phase contrast PLAN objectives provide nine brightfield magnification powers, 40X, 60X, 100X, 150X, 200X, 300X, 400X, 600X & 900X, and six phase contrast settings, 100X, 150X, 200X, 300X, 400X & 600X. It has a advanced adopted 30 watt Kohler illumination system designed for 90-240V wide voltage power supply.

The highly-sensitive 1.3MP digital camera captures low-light still images and video, and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac, there is a lite version with limited processing features.

This microscopy package is a perfect instrument for professional laboratory applications including observing tissue cultures in dishes and examining specimens in glass containers.

Features :

• A high quality professional phase contrast tissue culture microscope!
• A research-grade inverted microscopy system!
• Nine brightfield magnification settings, 40X, 60X, 100X, 150X, 200X, 300X, 400X, 600X & 900X
• Six phase contrast magnification powers, 100X, 150X, 200X, 300X, 400X & 600X

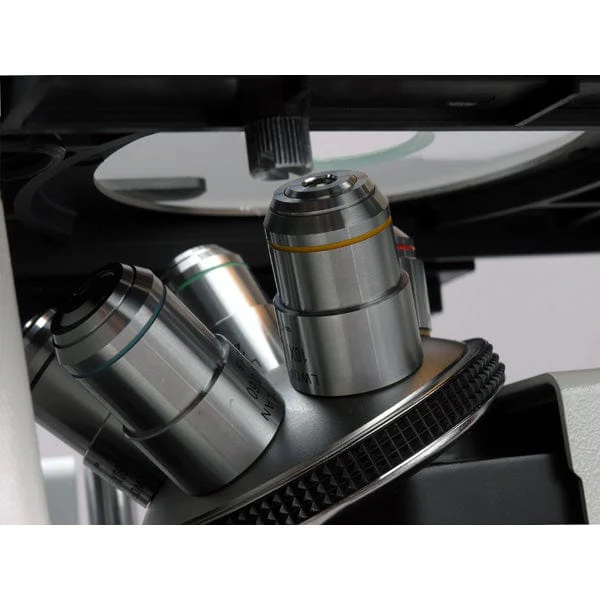

• Eight high quality bright field and phase contrast objectives
• Two pairs of high eye-point PLAN eyepieces
• Color corrected infinity optical system (CSIS)
• Gemel type of trinocular head, 45 degree inclined
• Fully coated optical system with high resolution
• Crystal clear sharp images
• Adopt 90-240V halogen illumination system
• Upright photo port for photographic/video capability
• Movable N.A. 0.3 condenser
• Adjustable phase center

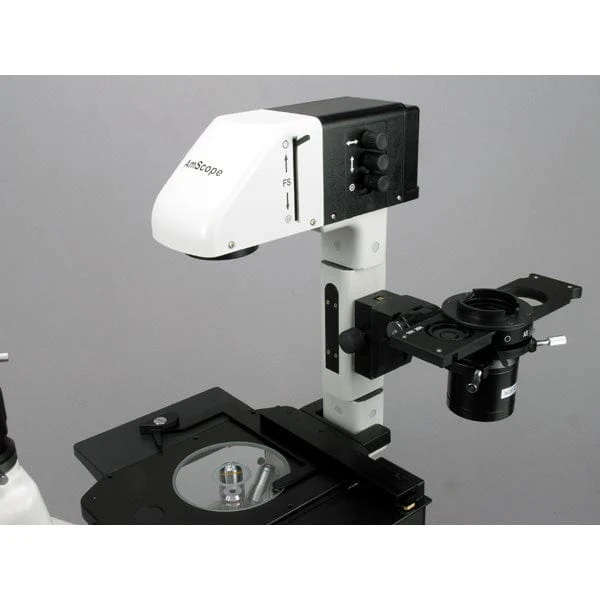

• Above-stage condenser with moving and focusing knobs and swing-out filters
• Stage moving-stop mechanism to protect slides and objectives
• Diopter adjustment on ocular
• Top light house with filters
• Spare bulb, fuse and dust cover
• Extra large 3-D double layer mechanical stage with stain resistant finish
• Low position coaxial stage movement control knobs
• Coaxial coarse fine focusing with CA knob tension control
• 30watt Kohler halogen illumination system with variable brightness
• Dual side mounted focusing controls
• Full optical glass elements
• Precise ground glass lenses
• All metal mechanical components
• Adjustable interpupillary distance
• Rugged cast alloy frame and stand with stain resistant enamel finish
• Manufactured under ISO 9001 quality control standard
• Excellent five (5) year factory warranty
• Package: 2
• Package Dimension: 33"x27"x16" and 13"x8"x9"
• Shipping Weight: 120 lbs



Specifications:

NAME SPECIFICATION Optical Color corrected infinity optical system (CSIS) Head Gemel type of trinocular head, 45 degree inclined Interpupillary 2"-3" (50-76mm) Eyepiece PL10X/22mm high-eye point PLAN eyepieces PL15X/16mm high-eye point PLAN eyepieces Nosepiece Reversed quintuple nosepiece Objective Infinite long work distance PLAN achromatic objective: LWD PL4X,10X,20X, 40X, 60X Infinite long work distance PLAN phase-contrast objective: LWD PH10X,20X,40X Focus System Fine and coarse coaxial focusing, torque adjustment for coarse Working distance of every circle: coarse focus: 38mm, fine focus: 0.2mm, precision 0.002mm Total working distance: upward 6.5mm & downward 2.5mm from focus position (1.5mm above stage) Stage Dimension: 6-1/4"(W)x9-7/8"(L)(160x250mm); ready to be extended for extra space by the optional stage extension boards Dimemsion of stage extension board: 2-3/4"(W)x7"(L)(70x180mm) Mechanical Stage Traveling range: 4-3/4"(X-direction) x 3-1/8"(Y-direction) (120x80mm) Low-position coaxial focusing Petri dish holder Transmitted Illumination 90-240V wide voltage power supply, 6V/30W Halogen bulb; pre-centered, adjustable brightness Super large working distance condenser NA=0.3, WD=72mm Reflected fluorescence illumination B,G filter blocks, with centering view field diaphragm and sliding filter preventing board Mercury light house Centering mercury bulb 100W, with adjusting reflected lens Fluorescence power supply 100-240V input AC power supply Light house dimensions: 9-1/4"(L)x5-1/4"(W)x6-1/8"(H) (236x134x156mm) Operating Condition Indoor Use: The highest height above sea level: 2000 M Temperature: 5 - 40 degree(C) (41 - 109 degree(F)) Humidity: 80% for 31 degree (C) (88 degree(F)) 70% for 34 degree(C) (93 degree(F)) 60% for 37 degree(C) (99 degree(F)) 50% for 40 degree(C) (104 degree(F)) Pollution: 2 (See IEC664)

Filter block Module Specification Fluorescence dyes B1 Exciter Dichroic Emitter 40X 60X 475AF40 505DRLP 535AF45 EGFP, FITC, Cy2@, AlexaFluor@488, DIO, Fluo-4 G1 Exciter Dichroic Emitter 560AF55 595DRLP 645AF75 Texas Red@, Texas Red@-X, Cy3.5@, Mito Tracker@ Red
